Semi-Automatic Tray Sealer TS-300

Type: Seal:380x265mm
Brand: 1059
Location: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 31 X 29 X 28
Shipping Weight: 217 lbs
CM Product Code: 6477
Financing Available
Note: Shipping to be determined
* Model Option Semi-Automatic Tray Sealer:

* Die Set options:

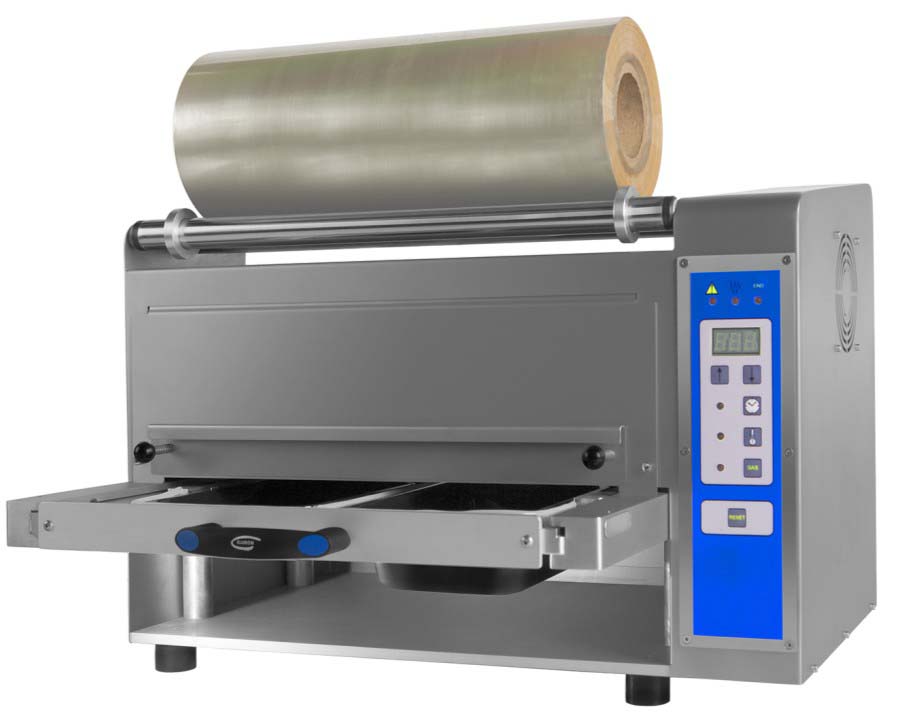

AK Ramon Semi-Automatic Tray Sealer TS-300

Technical information

  • Stainless steel construction.
  • Die set in anodized aluminum.
  • Semi-automatic tray sealer.
  • Automatic sealing system.
  • Automatic film feed.
  • Acoustic and visual device end of cycle.
  • Profile cut of film.
  • Digital panel with temperature control (0º-230ºC).
  • Compact and robust model.
  • Easy change of mold, molds are interchangeable in few seconds.
  • Fast heating of the selected temperature.
  • Simple use machine.
  • Allows working with different trays materials types, PP, PET, ALUMINUM…
  • Air compressor required for working.
  • Machine works in single phase.
  • Maximum sealing surface: 380x265mm.
  • Film roll width: 430mm.
  • Power: 1,500W.

Standard die set

  • 1/8 GN (168x130mm) - 4 cavities.
  • 1/4 GN (160x260mm) - 2 cavities.
  • 1/2 GN (320x260mm) - 1 cavity.


  • Any type of special die set can be made according to the customer trays.
  • 6L. Silent air compressor.
