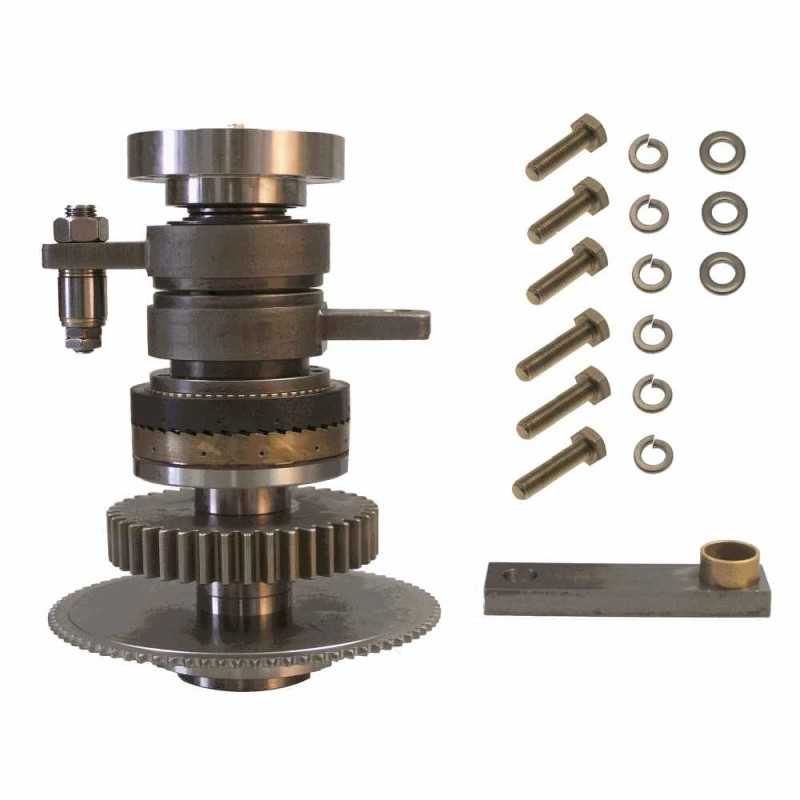

Coupling Complete

Type: F41418
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 749

Note: Shipping to be Determined.

* Coupling Complete SR2 Turbo No. 74 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Coupling Complete

Type: F41418
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 749

Note: Shipping to be Determined.

* Coupling Complete SR2 Turbo No. 74 and higher:
--F41998 Free wheel
--F26903 Spring lock washer
--F26983 Disc
--F23234 Hexagonal bolt
--F21042 Sechskantschraube
--F26961 Flange
--F20210 Federring
--F20202 U-Scheibe
--F26980 Flange
-- F26962 Self-aligning ball bearing
--F26968 Shaft
--F41420 Chain wheel
--F26965 Ring
--F26966 Sprocket wheel
--F26967 Ring
--F26977 Axial Grooved Ball Bearing
--F26969 Ring
--F20553 Disc
--F20553a Compensating disc
--F26979 Disc
--F24031 Spring lock washer
--F20417 Hexagonal bolt
--103748 Bracket
-- F26974 Toothed clutch magnet. SR 2

Pos. No.	Part No.	Description	Add. Info	Required
1	F41998	Free wheel	SR 2 / SR 2 T	1
2	F26903	Spring lock washer	DIN127 B 20	1
3	F26983	Disc	Ø 6,5 x Ø 42 x 5	1
4	F23234	Hexagonal bolt	DIN933 M12 x 45	3
5	F21042	Sechskantschraube	DIN933 M12 x 30	3
6	F26961	Flange	Ø 130 x 28	1
7	F20210	Federring	DIN127 A 12	6
8	F20202	U-Scheibe	DIN125 A 13	3
9	F26980	Flange	Ø 130 x 41	1
10	F26962	Self-aligning ball bearing	2207 E	2
11	F26968	Shaft	Ø 40 x 322	1
12	F41420	Chain wheel	SR 2 / SR 2 T	1
13	F26965	Ring	Ø 40,2 x Ø 60 x 10	1
14	F26966	Sprocket wheel	Z 40 m 4	1
15	F26967	Ring	Ø 40,2 x Ø 60 x 22	1
16	F26977	Axial Grooved Ball Bearing	DIN711 51108	2
17	F26969	Ring	Ø 40,2 x Ø 60 x 10	1
18	F20553	Disc	Ø 40 x Ø 50 x 0,1	4
19	F20553a	Compensating disc	Ø 40 x Ø 50 x 0,5	2
20	F26979	Disc	Ø 35,5 x Ø 60 x 4	1
21	F24031	Spring lock washer	DIN127 B 6	1
22	F20417	Hexagonal bolt	DIN933 M 6 x 16	1
23	103748	Bracket	SR 2 T	1
24	F26974	Toothed clutch magnet. SR 2	550.25.1.0	1
