Flange Exploded View 2 IR56 Injector No. 210 and Higher

Type: F42332
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2408

* Flange Exploded View 2 IR 56 No. 210 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Flange Exploded View 2 IR56 Injector No. 210 and Higher

Type: F42332
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2408

* Flange Exploded View 2 IR 56 No. 210 and higher:
--F29081 Flange
--F29167 Radial shaft seal
--F27707 Slide bushing
--F24237 O-ring
--F22888 Washer
--F20259 Hexagonal nut

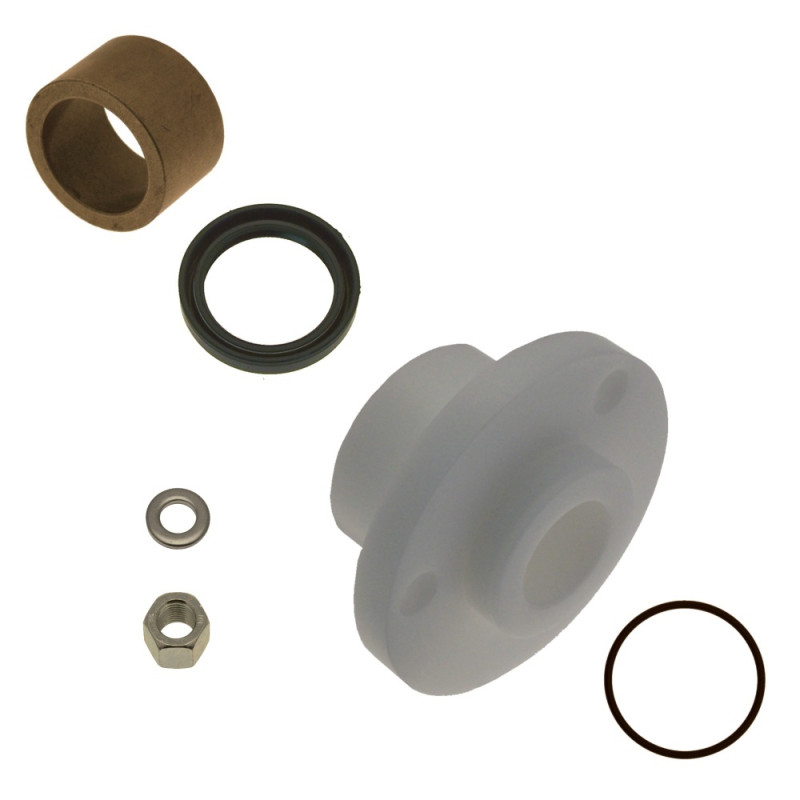

Flange Exploded View for IR56 Injector No. 210 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F29081	Flange	Ø 30,1 x Ø 100 x 55	1
2	F29167	Radial shaft seal	Ø 30 x Ø 40 x 7	1
3	F27707	Slide bushing	DIN1850 Ø 30 x Ø 40 x 25	1
4	F24237	O-ring	Ø 45 x 2,5	1
5	F22888	Washer	DIN125 A 8,4	3
6	F20259	Hexagonal nut	DIN934 M 8	3
