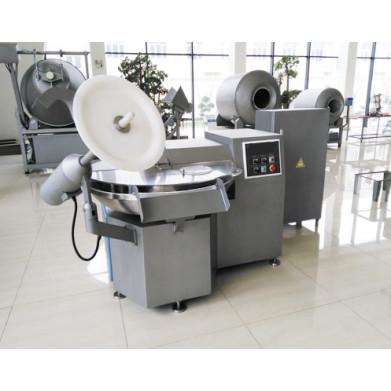

Industrial Meat Bowl Chopper 125L

View Details Request Quotes

Quickview

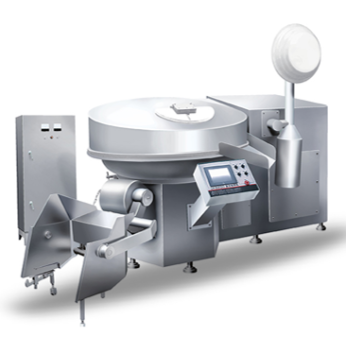

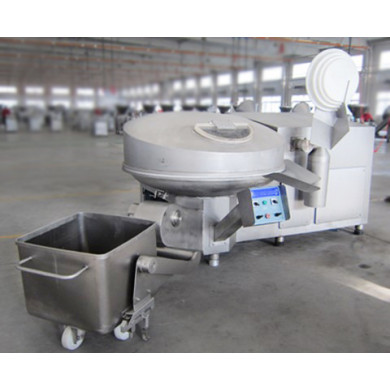

Commercial Heavy Duty Bowl Cutter with Vacuum

View Details Request Quotes

Quickview

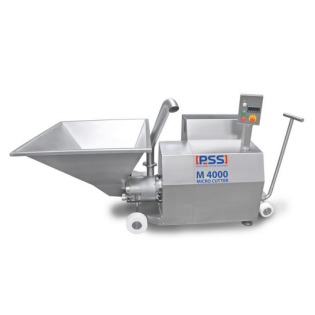

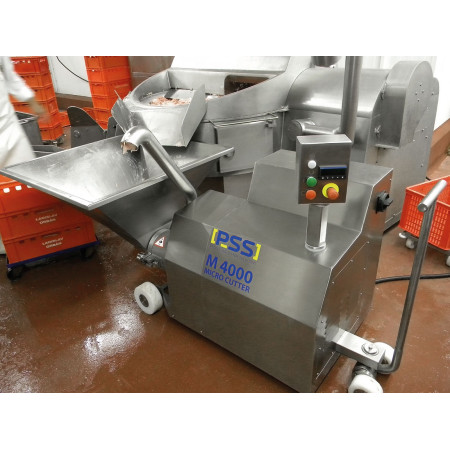

PSS Micro cutter

View Details Request Quotes

Tags: Bowl Cutters

Description

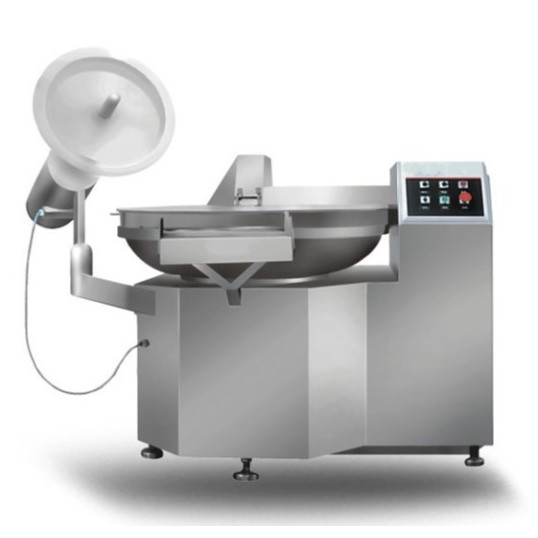

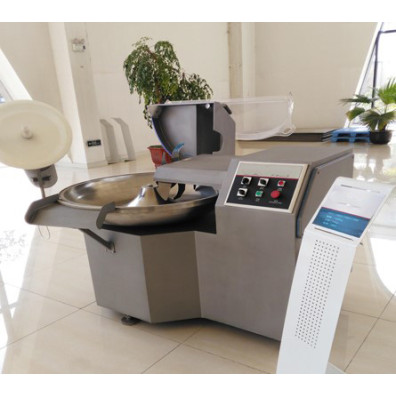

Industrial Meat Bowl Cutter 80L

The Industrial Meat Bowl Cutter 80L achieves a premier, precision-grade cutting result due to the ideal structural combination of rapid cutter speeds, synchronized pan movement, and highly calibrated tolerances between the processing knives and the revolving pot. Manufactured with high-quality raw materials and excellent structural craftsmanship, this premium meat bowl cutter guarantees the finest texturing output for high-class food products. Whether you require a high-volume commercial cutting machine or a robust, sanitary heavy duty bowl cutter for intensive batch work, this advanced bowl cutter balances easy operation and absolute structural safety to satisfy diverse commercial plant footprints.

Features & Advantages

HACCP Sanitary Compliance: Fully constructed using premium food-grade 304/316 stainless steel with completely smooth surfaces to enable hygienic plant cleaning in a very short time.
Precision Knife Clearance: Engineered with a micro-tolerance gap of less than 2mm between the cutting knife and the cutting pot to ensure uniform emulsification without product bypass.
Freshness Preservation Layout: Integrated real-time temperature monitoring ensures minimal thermal transfer during operation, safeguarding raw product freshness.
Advanced Automation Accessories: Outfitted with an automatic product output unloader device alongside a heavy-duty automatic lifting mechanism for easy batch transfers.
Double Axis Seal Engineering: Equipped with a robust double-seal structure to prevent cutter axis rusting, completely avoiding the risk of batch contaminants in sausage meat mixes.
Waterproof & Acoustic Safety: Features an ergonomic, fully waterproof layout reaching strict IP65 security standards, coupled with an integrated noise-protecting acoustic cover.
Broad Ingredient Versatility: While optimized for meat processors, this system provides excellent execution for fish processing, fruits, vegetables, and nut grinding.

Technical Product Specifications

Bowl Volumetric Capacity	80 Liters
Productivity Output	70 - 75 kg per batch
Knife Configuration	6 High-Precision Stainless Steel Knives
Knife Speed Profile	750 / 1500 / 3000 r/min (Variable Speed)
Bowl Rotation Speed	7 - 11 r/min
Unloader Disc Speed	88 r/min
Electrical Configuration	220V / 60Hz / 3Ph
Machine Weight	1300 kg (approx. 2,866 lbs)
Physical Dimensions (W x D x H)	2150 mm x 1400 mm x 1200 mm

* Note: To perfectly match specific plant product demands, both specialized Vacuum and Non-Vacuum execution setups are available upon individual customer order configuration. All critical core components are processed in advanced machining centers to guarantee maximum industrial precision.
