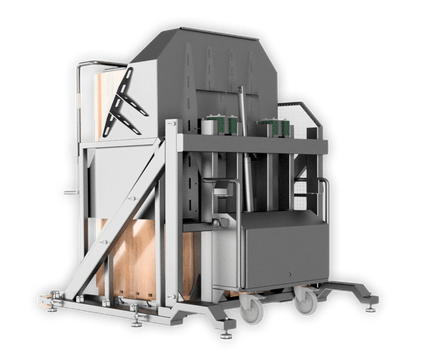

Wide Pallet Crate Combo Dumper

Wide Pallet Crate Combo Dumper

The model was created for a customer who needed to empty 3 different containers - with different widths and heights. It is called wide tipper, which means that we place the container on the tipper profiles. Such a system of placing the container or box on a tipper allows convenient access for a pallet truck.

This tipper is for boxes and containers that will improve the efficiency of the unloading processes and speed up the production processes in your company. Due to the low weight, the tipper can be easily moved "manually" to places where you need help. The mobile base gives the opportunity to adapt the device to the workplace.

Specifications:

• Material: Stainless steel
• Tipping angle: 0° to 115°
• Servomotor: Stainless steel
• Mobile on wheels with brakes
• Lowering signal

Technical Data:

• Dumping height: 1200mm
• Max load: 900kg
• Power: 220V
• Container handle: Base (1200x800mm – 1300x1200mm) Height (up to 2000mm)

Options:

• Protective mesh
• Stabilizing feet
• Lights lowering
