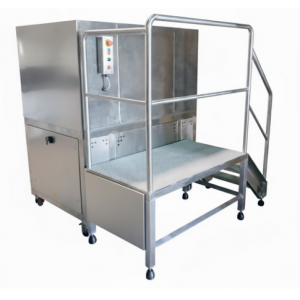

Stage 1 Big Bone Pre-Breaker
Ships from: FOB Brampton, Ontario, Canada
U/M: Each
Stock: On Order
Product Dimension: 108 X 67 X 79
Product Weight: 3307
CM: 8634
Brochure
Stage 1 Pre-Crusher: Heavy-Duty Primary Bone Breaker
The Stage 1 Pre-Crusher is the powerhouse of the industrial bone processing line. Engineered for massive torque and durability, it serves as the primary breakdown unit for large carcass parts, frozen blocks, and heavy skeletal structures.
With a massive capacity of 10-15 Tons per hour, it effortlessly reduces difficult raw materials into manageable 30mm – 120mm chunks, preparing them for fine grinding.
Input Capability: Heavy-Duty Raw Material
The Starting Point: Unlike standard grinders, this machine is designed to accept large, difficult inputs that would break other equipment.
It features a low-speed, high-torque design specifically engineered to crush:
- Fresh Whole Bones: Beef femurs, knuckles, and tibia.
- Frozen Blocks: Easily breaks down solid frozen pallets.
- Carcass Parts: Pork heads, ribs, and leg bones.

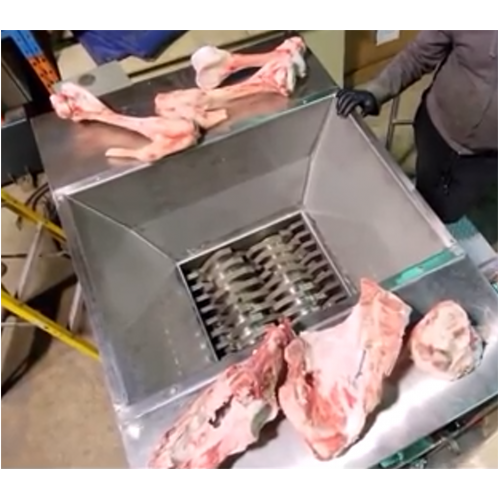

INPUT MATERIAL: Large Whole Bones & Frozen Blocks
Operational Output: The "2-4 Inch" Standard
The Stage 1 Pre-Crusher transforms whole femurs and knuckles into consistent, fist-sized chunks. This is the critical feed specification required for the next stage of processing.
High-Volume Chunk Output
Precise 30mm-120mm Sizing
Ready for fine grinding? This output feeds directly into Stage 2.
View Compatible Stage 2 Crusher »Engineered for Extreme Loads

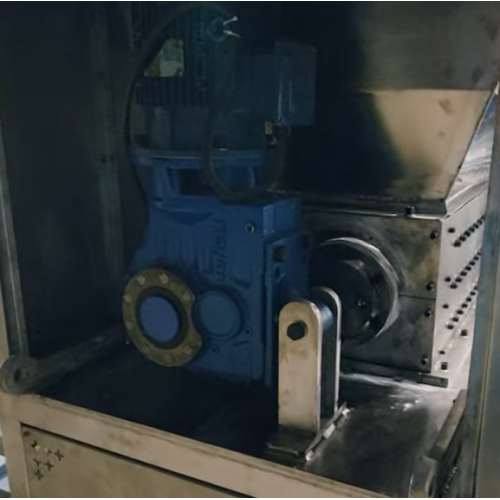

Unlike standard grinders, the Pre-Crusher operates at a low speed (25 RPM) with immense torque. This design allows it to "chew" through hard, heavy bones without stalling or overheating.

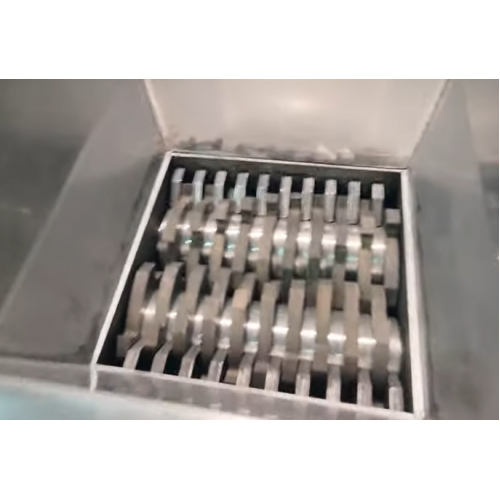

- 3CR13 Stainless Steel Blades: Massive 30mm thick blades designed to withstand high-impact loads.
- Low Speed / High Torque: Running at just 25 RPM prevents "bone bounce" and ensures positive engagement with large items like cattle femurs.
Technical Specifications
| Production Capacity | 10,000 - 15,000 kg/hr (10-15 Tons) |
| Output Size | 30mm – 120mm (Approx. 1.2" – 4.7") |
| Blade Material | 3CR13 Stainless Steel (30mm Thick) |
| Rotation Speed | 25 RPM (High Torque) |
| Dimensions | 2750 x 1700 x 2000 mm |
| Machine Weight | 1500 kg |
Power Requirements
- Motor Power: 22 kW / 29.5 HP
- Voltage Options: 380V 50Hz (Std) / 220V 60Hz 3Ph (Available) / 480V / 575V
- Certification: Conforms to CE Standards
