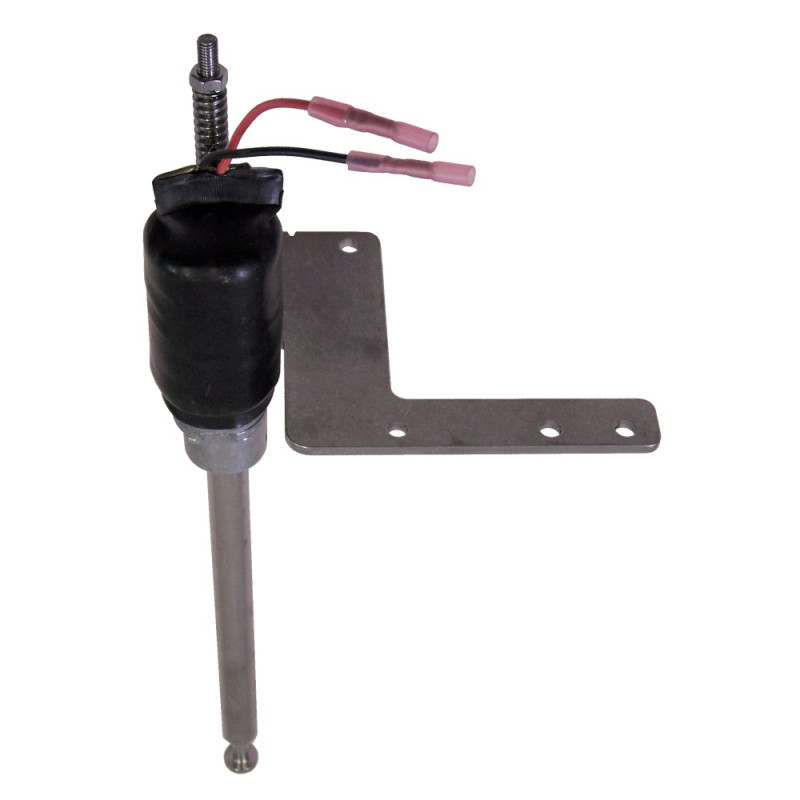

Switch Unit Exploded View 1 Ruhle IR56 No. 210 and Higher
- Stock: On order
- Brand: Ruhle
- Type: F443746
Switch Unit Exploded View 1 IR56 No. 210 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F29175 | plate / sheet | 156 x 100 x 4 | 1 |
 |
2 | F20203 | Hexagonal nut | DIN934 M 6 | 1 |
 |
3 | F20570 | Washer | DIN125 A 4,3 | 2 |
 |
4 | F245844 | Cylinder head screw | DIN912 M 4 x 16 | 2 |
 |
5 | F459201 | Spindle | IR 28/56 | 1 |
|
6 | F20258 | Washer | DIN125 A 6,4 | 1 |
 |
7 | F24522 | Hexagonal bolt | DIN933 M 6 x 25 | 4 |
 |
8 | F444874 | Mini hub drive | MHG 100/50 | 1 |
