Abdeckung Exploded View No. 8 and Higher

Abdeckung Exploded View No. 8 and Higher
Abdeckung Exploded View No. 8 and Higher
Abdeckung Exploded View for MGR400 Tumbler No. 8 & higher     Pos No. Part... Read More

  • Stock: On Order
  • Brand: Ruhle
  • Type: 107999

Available Options

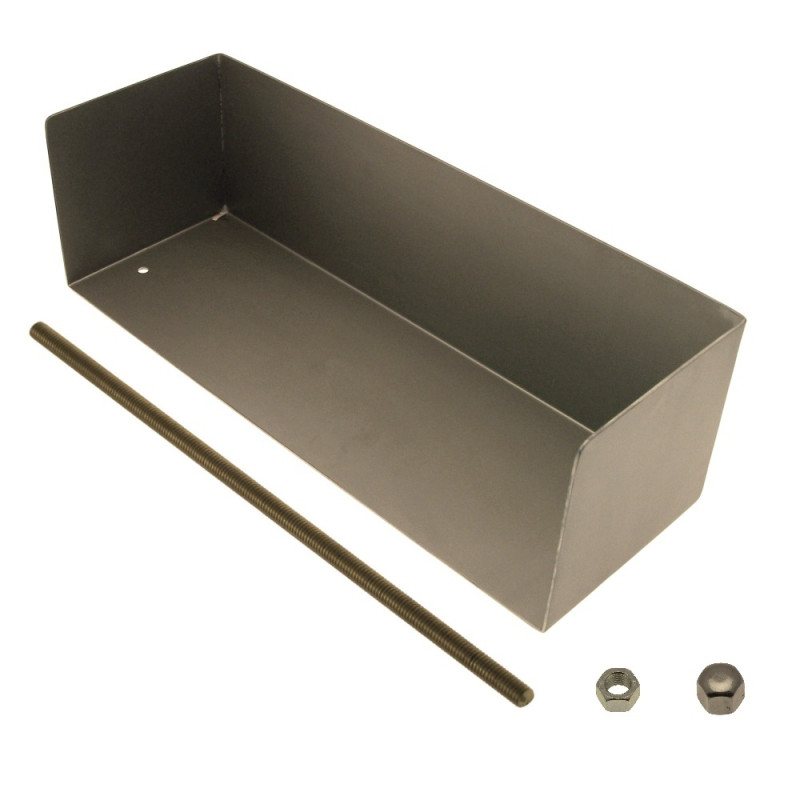

Abdeckung Exploded View for MGR400 Tumbler No. 8 & higher


  Pos No. Part No. Description Add Info Required
107949 1 107949 Abdeckung 487 x 168 x 152,5 x 2,5 1
107634 2 107634 Spindel M 6 x 190 2
3 F20203 Hexagonal nut DIN934 M 6 2
F20810 4 F20810 Hutmutter DIN917 M 6 2
