Support continuous production with a fryer configured for how your product behaves in oil. Choose mesh belts, propeller-assisted handling or a trawl propeller arrangement to suit your process. Adjustable conveyor speed and oil-handling equipment support daily operation. Request a quotation with your product details, frying time, required output and electrical supply.

Mid-Range Continuous Fryer | 500 × 2000

  • Stock: On Order
  • Brand: CM-MF-CN
  • Type: Mid-Range Continuous Fryer

Available Options

Mid-Range Continuous Fryer | 500 × 2000

Designed for continuous production, this model supports controlled frying and flexible product handling in a mid-size production line.

Conveyor Configurations

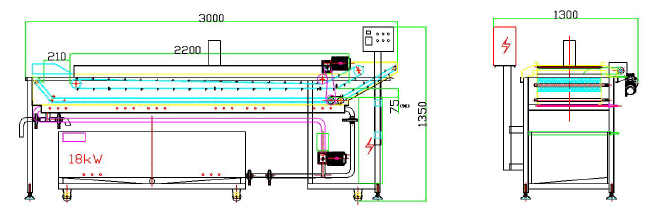

  • Top and bottom universal mesh belts: For direct immersion and products requiring belt guidance.

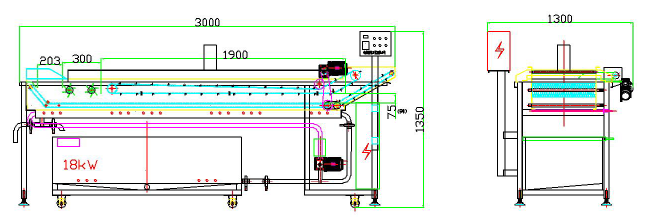

  • Two propellers with top and bottom mesh belts: For belt-controlled travel with light product movement.

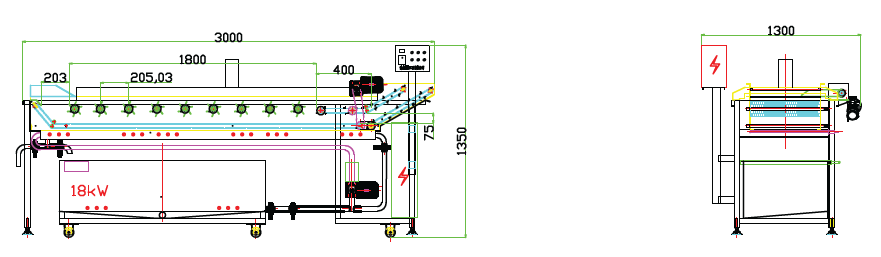

  • All-propeller / trawl system: For floating products requiring pushing and agitation.

Applications and Production Planning

Suitable applications may include vegetables, nuts, snack products, coated products and prepared foods. Selection depends on product size, frying time and behaviour in the oil.

Provide your product details and required output so the configuration can be matched to your process.

Specifications and Included Equipment

  • Overall dimensions (L × W × H): 2100 × 1300 × 1350 mm
  • Fryer oil capacity: Approximately 210 L
  • Oil storage tank capacity: 330 L
  • Effective frying distance: Approximately 1350 mm
  • Distance between belts: 75 mm standard; other distance available.
  • Conveyor speed: based on customer fry time.
  • Electrical supply: 220 V, 60 Hz, three-phase standard; other configurations available by quotation

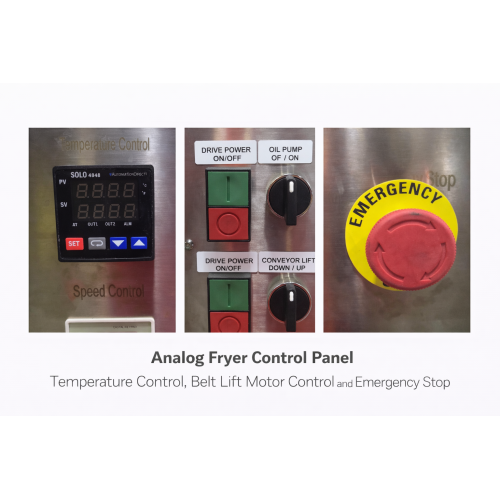

  • Temperature control: Adjustable PT100 control with automatic heating

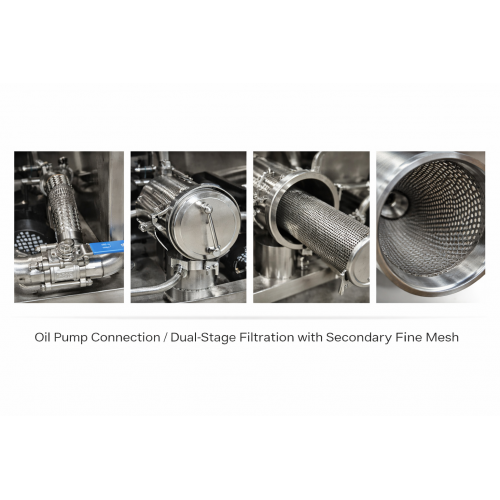

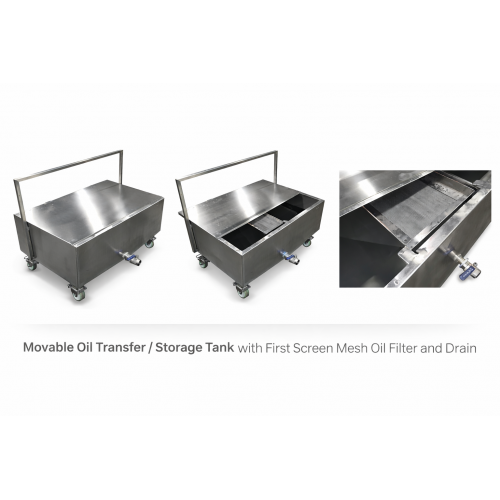

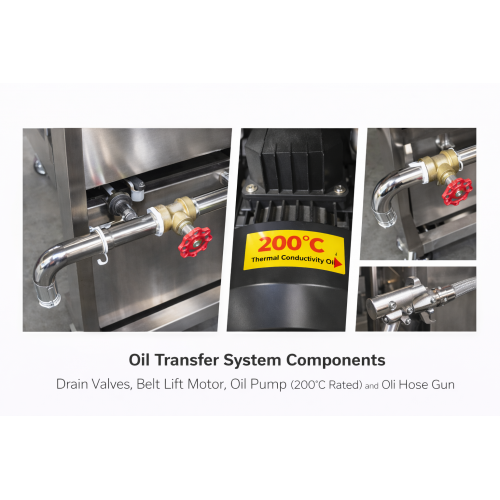

  • Oil handling: Storage tank, one oil pump and filtration equipment
  • Oil level monitoring: Optional
  • Cleaning access: Electrically operated lifting/tilting mechanism
  • Construction and mobility: Stainless steel; fryer and tank equipped with wheels

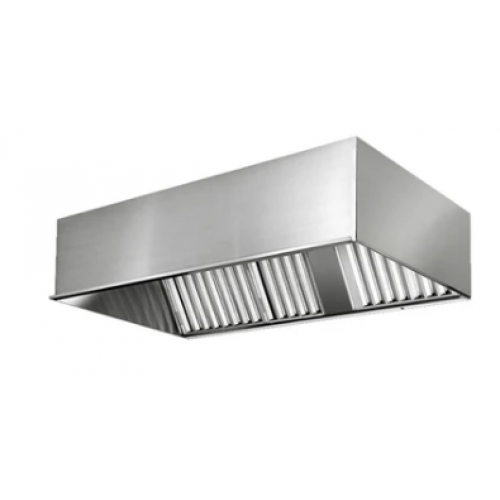

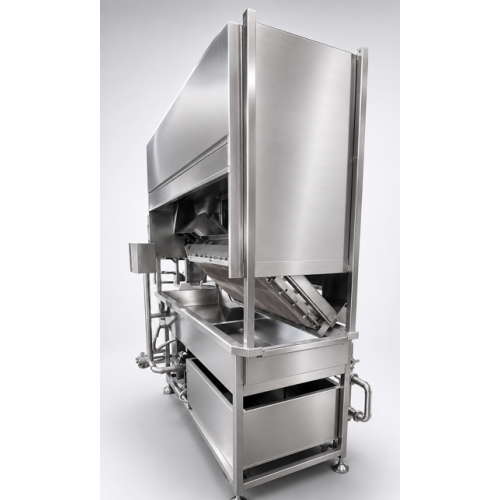

  • Exhaust hood: Available with or without side covers

Choose the product-handling configuration from the options above.

Final specifications, heating power and selected features are confirmed with your quotation.
