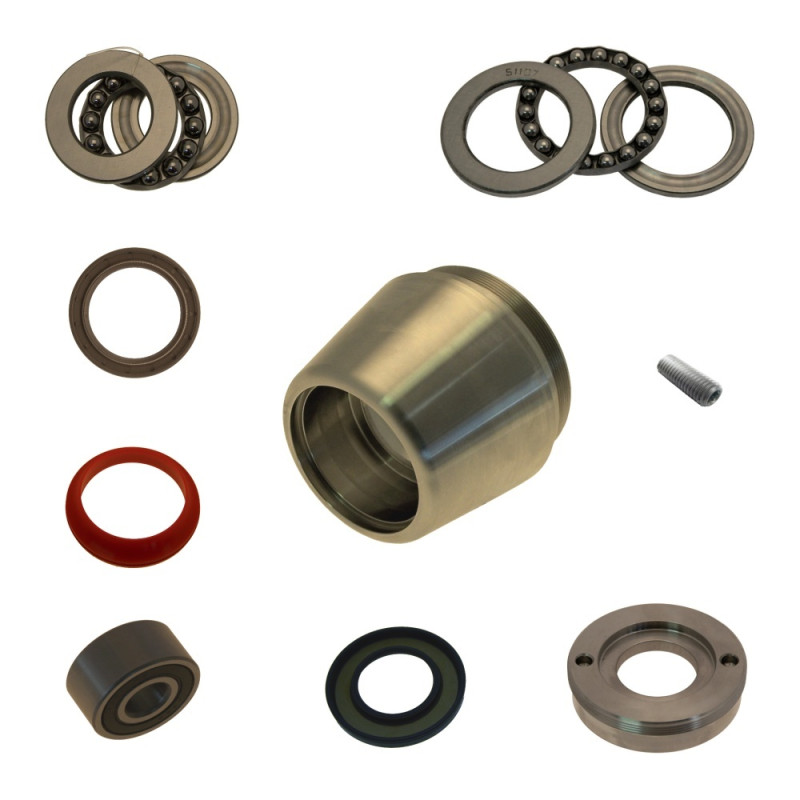

* Flansch Exploded View MGR 400 No. 8 and higher:
--107615 Aufnahme
--F23387 Axial-Rillenkugellager
--107546 Radial-Wellendichtring
--107152 Abstreifer
--F23386 Schrägkugellager
--F28040 Radial-Wellendichtring
--107614 Mutter
--F24551 Axial-Rillenkugellager
--F25432 Gewindestift

Flansch Exploded View

Pos. No.	Part No.	Description	Add. Info	Required
1	107615	Aufnahme	Ø 100 x 85	1
2	F23387	Axial-Rillenkugellager	DIN711 51207	1
3	107546	Radial-Wellendichtring	Ø 50 x Ø 62 x 7WA	1
4	107152	Abstreifer	Ø 49,5 x Ø 66 x 14	1
5	F23386	Schrägkugellager	DIN628 - 3207 2RS	1
6	F28040	Radial-Wellendichtring	Ø 35 x Ø 62 x 7	1
7	107614	Mutter	M 80 x 1,5 x Ø 36 x 20	1
8	F24551	Axial-Rillenkugellager	DIN711 51107	1
9	F25432	Gewindestift	DIN914 M 6 x 10	1
