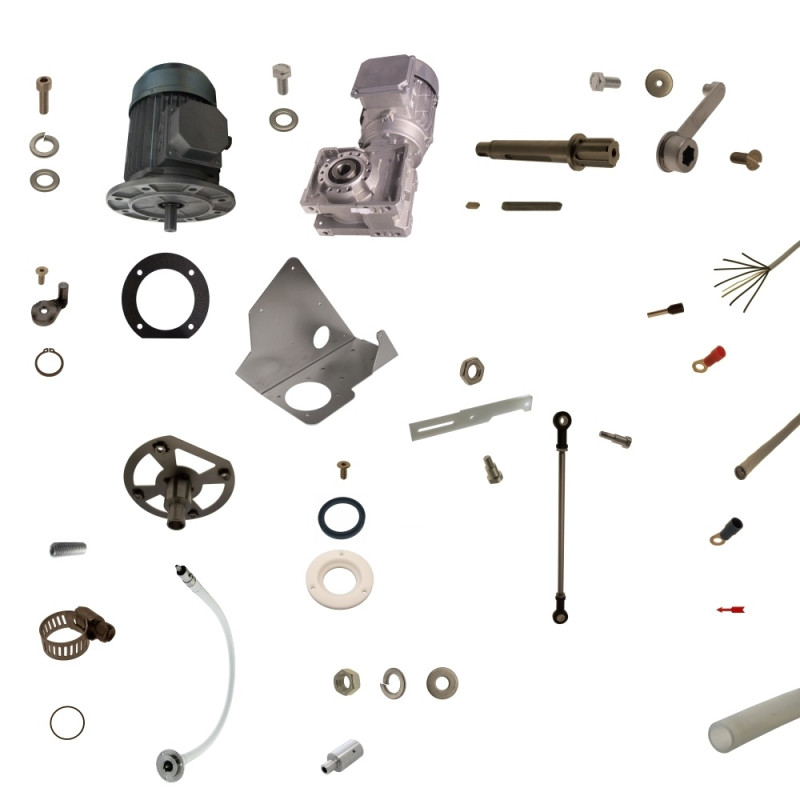

Antrieb Assembly for IR17 No. 235 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 108932 | Profil | 446 x 358,6 x 217,9 x 4 | 1 |
 |
2 | 109195 | Flansch | IR 17 | 1 |
 |
3 | F22888 | U-Scheibe | DIN125 A 8,4 | 4 |
 |
4 | F21260 | Federring | DIN128 A 8 | 10 |
 |
5 | F20259 | Sechskantmutter | DIN934 M 8 | 10 |
 |
6 | F20455 | Sechskantschraube | DIN933 M 8 x 25 | 4 |
 |
7 | F27693 | U-Scheibe | DIN125 A 10,5 | 6 |
|
8 | F26379 | Federring | DIN127 B 10 | 4 |
 |
9 | F27479 | Zylinderschraube | DIN912 M 10 x 35 | 4 |
 |
10 | 106881 | Welle | Ø 35 x 196 | 1 |
 |
11 | 109619 | Exzenter | IR 17 | 1 |
 |
12 | F20048 | Senkschraube | DIN7991 M 6 x 16 | 1 |
 |
13 | 109121 | Hebel | 35 x 15 x 277 | 1 |
 |
14 | 109163 | Schraube | Ø 19,5 x 36,3 | 1 |
 |
15 | 109164 | Schraube | Ø 19,5 x 52 | 1 |
 |
16 | F20047 | Sechskantmutter | DIN439 M 10 | 2 |
 |
17 | 106901 | Pleuel | IR 17 | 1 |
 |
18 | 108987 | Flansch | Ø 100 x 15 | 1 |
 |
19 | F20598 | Senkschraube | DIN7991 M 5 x 12 | 3 |
 |
20 | F28057 | Radial-Wellendichtring | Ø 50 x Ø 65 x 8 | 1 |
 |
21 | 110294 | Hebel | IR 17 | 1 |
 |
22 | F25429 | Sicherungsring | DIN471 Ø 25 x 1,2 | 1 |
 |
23 | F21490 | Senkschraube | DIN963 M 8 x 20 | 1 |
 |
24 | 110605 | Adapter | Ø 30 x 65 | 1 |
 |
25 | 110998 | Antriebswelle | L=1102mm | 1 |
 |
26 | 109436 | Dämpfer | Ø 200 x 3 | 1 |
 |
27 | 111512 | Silikonschlauch | Ø 25 x 3 | 1050 |
 |
28 | F20561 | Paßfeder | A 8 x 7 x 70 | 1 |
 |
29 | F20222 | Paßfeder | A 6 x 6 x 16 | 1 |
 |
30 | F26600 | Scheibe | Ø 8,5 x Ø 20 x 2 | 6 |
 |
31 | F22116 | Scheibe | Ø 6,5 x Ø 30 x 3 | 1 |
 |
32 | F20685 | Sechskantschraube | DIN933 M 6 x 10 | 1 |
 |
33 | F25432 | Gewindestift | DIN914 M 6 x 10 | 1 |
 |
34 | F20165 | Schlauchschelle | HAS 16 Ø 17-38 | 1 |
 |
35 | F27892 | O-Ring | Ø 44 x 2 | 2 |
 |
36 | 108971 | Getriebemotor | 2/4 CEGC 080Sa | 1 |
 |
37 | F23730 | Kabel | ÖZ-J 7 x 1.5 mm² | 800 |
 |
38 | F27324 | Aderendhülse | ÖZ-J 7 x 1.5 mm² | 7 |
 |
39 | F27686 | Quetschkabelschuh | 620/4, rot, isoliert | 7 |
 |
40 | 109403 | Pumpenmotor | CIMRMT080E2S TD-B5 | 1 |
 |
41 | F147522 | Aufkleber | Drehrichtungspfeil | 2 |
 |
42 | F27759 | Kabel | F-CY-JZ 4 x 2,5 mm² | 1000 |
|
43 | F27686 | Quetschkabelschuh | 620/4, rot, isoliert | 8 |
 |
44 | F21363 | Quetschkabelschuh | 630/4, blau, isoliert | 1 |
