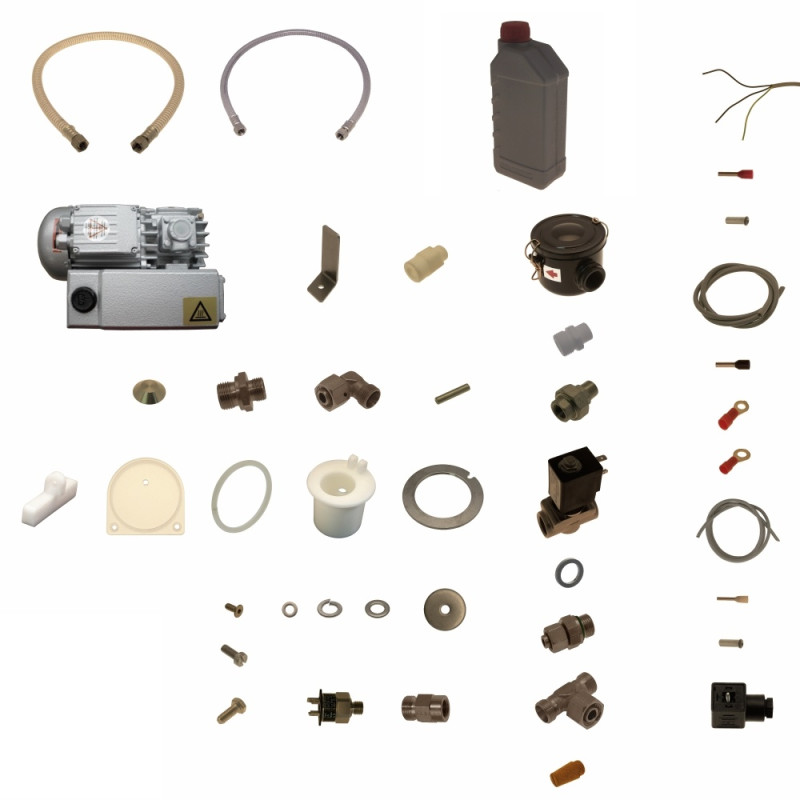

Vakuumsystem Assembly for Ruhle MGR500 Vacuum Tumbler
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F25931 | Air Filter Housing | Ø 98x86 Filter C 75 | 1 |
 |
2 | F255709 | Screw Joint | 1/2" | 1 |
 |
3 | 105537 | Screw Joint | EGKO-12LR1.2WD | 2 |
 |
4 | 105539 | T-Piece | XETKO-12L | 2 |
 |
5 | 105540 | Screw joint | MAV 12 LR OMD71 | 1 |
 |
6 | F27520 | Silencer | 1/2 Zoll | 1 |
 |
7 | 105561 | Hose | MKR 300/600 | 1 |
 |
8 | 107966 | Hose | MGR 400 / 900 | 1 |
 |
9 | 107993 | Container | Ø 120 x 130,5 | 1 |
 |
10 | 107349 | Housing | 90 x 37,5 x 18 | 1 |
 |
11 | 107352 | Flap | 90 x 90 x 6 | 1 |
 |
12 | 107356 | Pin | Ø 6 x 30 | 1 |
 |
13 | 105506 | Vacuum pump oil | MGR 500 | 1 |
 |
14 | F20598 | Countersunk Bolt | DIN7991 M 5 x 12 | 2 |
 |
15 | F148969 | Seal | 8 x 6 x 260 | 1 |
 |
16 | 107353 | Weight | Ø 40 x 10 | 1 |
 |
17 | F25984 | Cylinder head screw | DIN84 M 5 x 12 | 1 |
 |
18 | 107354 | Washer | M100 x 2 x Ø 145 x 6 | 1 |
 |
19 | 107450 | Double Nipple | G1/2 - G3/4 | 1 |
 |
20 | 107384 | Double Nipple | G1/2 - G3/4 | 1 |
 |
21 | 108142 | Holder | 63,5 x 46 x 2,5 | 1 |
 |
22 | F20258 | Washer | DIN125 A 6,4 | 1 |
 |
23 | F24031 | Spring lock washer | DIN127 B 6 | 5 |
 |
24 | 109297 | Washer | Ø 21,5 x Ø 30,5 x 4 | 2 |
 |
25 | F22116 | Disc | Ø 6,5 x Ø 30 x 3 | 4 |
 |
26 | F21045 | Washer | DIN125 A 5,3 | 1 |
 |
27 | 105691 | Double nipple | GE12LR1/271X | 2 |
 |
28 | 105538 | Elbow connector | XEWKO-12L | 2 |
 |
29 | F20417 | Hexagonal Bolt | DIN933 M 6 x 16 | 5 |
 |
30 | 106224 | Vacuum pump | KC 0016 E | 1 |
 |
31 | F20698 | Cable | ÖZ-J 4 x 1.5 mm² | 2900 mm |
 |
32 | F27324 | Cable end sleeve | 1,5 mm² black | 4 |
 |
33 | F27686 | Crimp type socket | 620/4, red, isolated | 3 |
 |
34 | F27687 | Crimp type socket | 620/5, red, isolated | 1 |
 |
35 | F20914 | Pressure transmitter | 8472.xx.5717.05.19.61.01 | 1 |
 |
36 | 104173 | Cable | ÖCYZ-J 3 x 0.5 mm² | 3350mm |
 |
37 | F23309 | Valve Connector | M20, configuration A | 1 |
 |
38 | F27358 | Cable end sleeve | 0,5 mm² white | 3 |
 |
39 | F28754 | Cable end sleeve | 0,5 -1,0 mm² naked | 3 |
 |
40 | F25937 | 2/2 way valve 230V | AWS-218/10 MG12E | 2 |
 |
41 | F23343 | Cable | ÖZ-J 3 x 1.0 mm² | 1 |
 |
42 | F27357 | Cable end sleeve | 1,0 mm² red | 3 |
