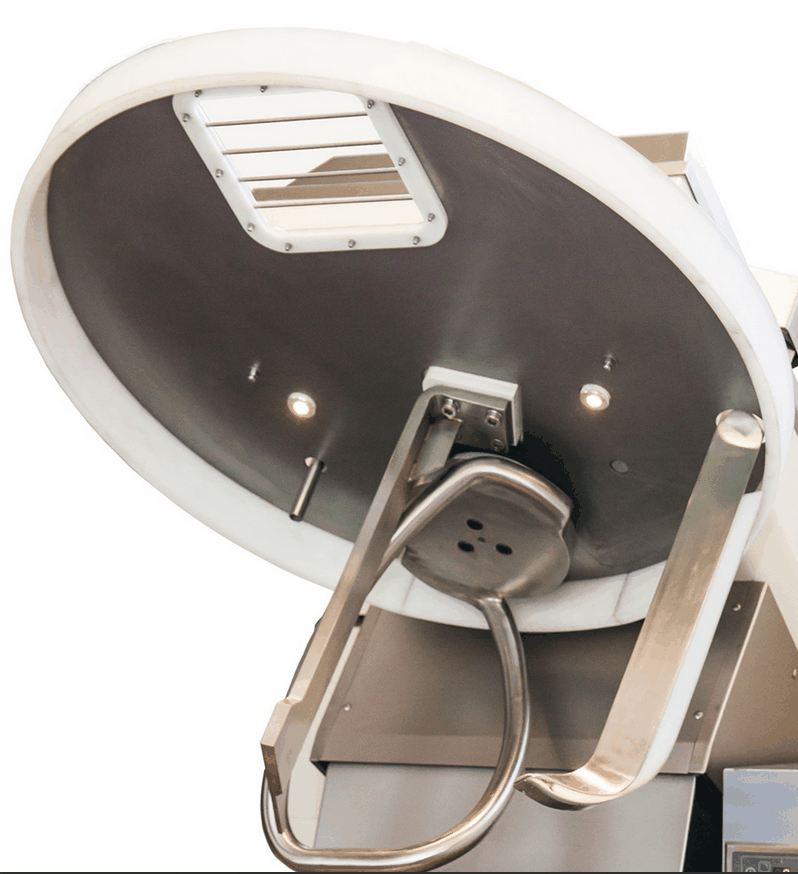

Angle mixers are the newest devices, created for mixing demanding doughs. It has the ability to mixer dough for rye cakes, mixed cakes with a predominance of rye, and acids. The unique shape of the mix ensures gentle and thorough mixing of the ingredients.
Individual selection of speed rotation allows you to adjust the machine to the dough, not the dough to the device, as it was before. Thanks to these parameters, it is possible to obtain the best properties of dough according to traditional recipes. An additional advantage of angle mixers is the compatible with all bowl models from spiral machines.
Specifications:
Technical Data:
|
Model: |
|
175 |
250 |
340 |
500 |
|
Bowl capacity |
dm3 |
175 |
250 |
340 |
500 |
|
Amount of dough max / min |
kg |
120/5 |
160/10 |
220/10 |
340/20 |
|
Mixture turnover |
rpm |
100 - 200 |
100 - 200 |
100 - 200 |
93 - 180 |
|
Smooth adjustment of the mixer rotation |
yes/no |
yes |
yes |
yes |
yes |
|
Range of activity inverter |
rpm |
60 - 250 |
60 - 250 |
60 - 250 |
60 - 250 |
|
Installed power |
kW |
7 |
9,2 |
13,5 |
17 |
|
Height |
mm |
1275 |
1275 |
1500 |
1550 |
|
Width |
mm |
1000 |
1050 |
1100 |
1150 |
|
Length |
mm |
1460 |
1460 |
1650 |
1800 |
|
Height with head raised |
mm |
2000 |
2000 |
2100 |
2150 |
