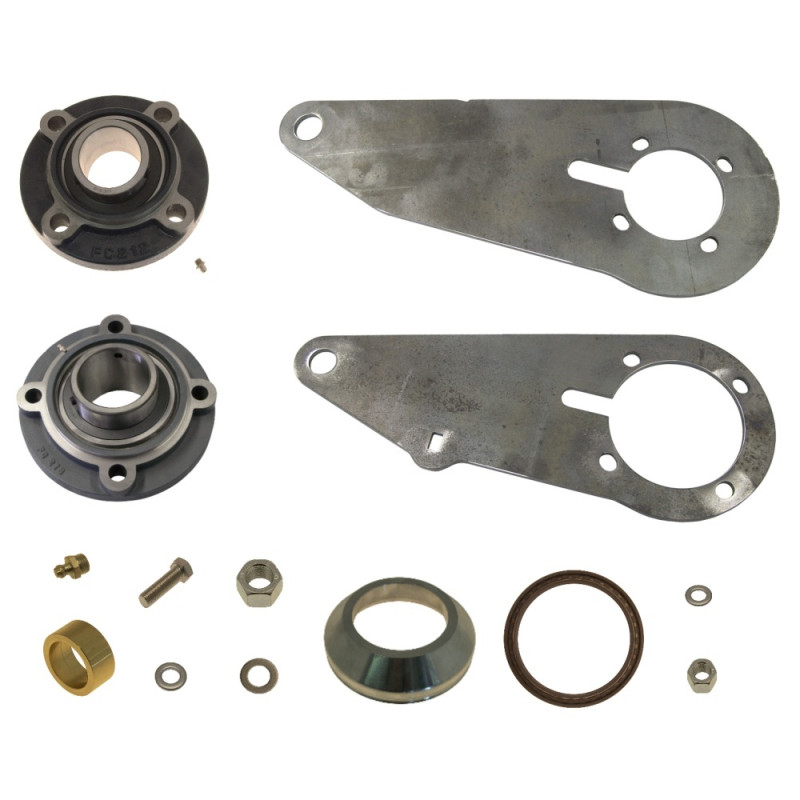

Arm Complete for SR3 Dicer Lifting Unit with Serial No. 35 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F23844a | Flange bearing | UCFC 212 | 1 |
 |
2 | F28483 | Grease nipple | M 10 x 1 | 2 |
 |
3 | F28635 | Traverse | 677 x 282 x 10 | 1 |
 |
4 | F28621 | bushing | Ø 30 x Ø 40 x 18 | 2 |
 |
5 | F23713 | Washer | DIN125 A 17 | 4 |
 |
6 | F23786 | Hexagonal bolt | DIN933 M16 x 55 | 4 |
 |
7 | F28637a | Flange bearing | UCFC 218 | 1 |
|
8 | F28638 | Traverse | 677 x 270 x 10 | 1 |
 |
9 | F20543 | Washer | DIN125 A 21 | 4 |
 |
10 | F20563 | Hexagonal nut | DIN934 M 20 | 4 |
 |
11 | F28640 | Take-up ring | Ø 91,6 x Ø 130 x 35 | 1 |
 |
12 | F245482 | Sealing ring | Ø 90 x Ø 110 x 5 | 1 |
|
13 | F20258 | Washer | DIN125 A 6,4 | 4 |
|
14 | F20203 | Hexagonal nut | DIN934 M 6 | 4 |
 |
15 | F21948 | Threaded pin | DIN914 M 6 x 16 | 4 |
