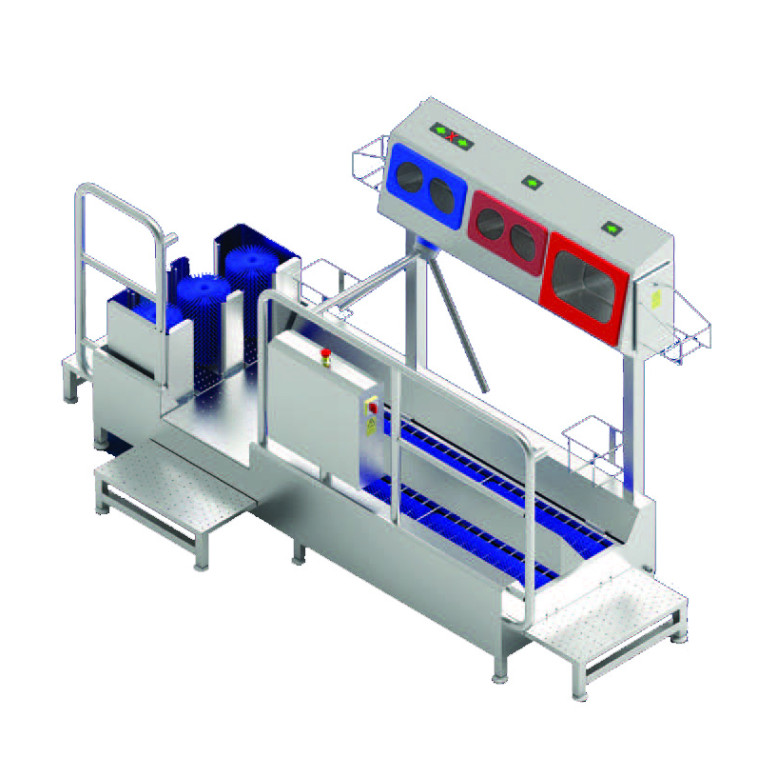

High and Low-heeled Shoe Washer and Hand Washer Dryer Disinfection Unit with Side Exit

High and Low-heeled Shoe Washer and Hand Washer Dryer Disinfection Unit with Side Exit

Details related to Washer Length and Brushes

• Washer made of stainless steel materials 1.4301.
• Water supply: 1/2”.
• Water drainage: PVC ø 50 mm.
• Power supply: 220 V, 60 Hz 3Ph
• Control: 24V, IP67.
• Drive: 5 x 0,25 kW or 3 x 0,25 kW, IP55.
• Washer width: 49 inches
• Sensors operated.
• Automatic washing liquids supply.

Details related to Hand Washer, Dryer and Disinfection

• Make proper hand hygienic activities (washing, drying, disinfection) confirmed by light control (red-green), turns rotary gate about 1/3 of tripod rotation and allows for passage of one person.
• Basket for 5-liter container of liquid.
• Programming the times of individual cycles and the amount of provide liquids.
• Anti-vandalism sound alarm.
• Controlling voltage: 24 V – PLC Siemens Logo! IP 65.
• Water supply: 1/2”.
• Water drainage: PVC ø 16 mm.
• Emergency passage in case of lack of power supply.
• Vent air spray buttons.
