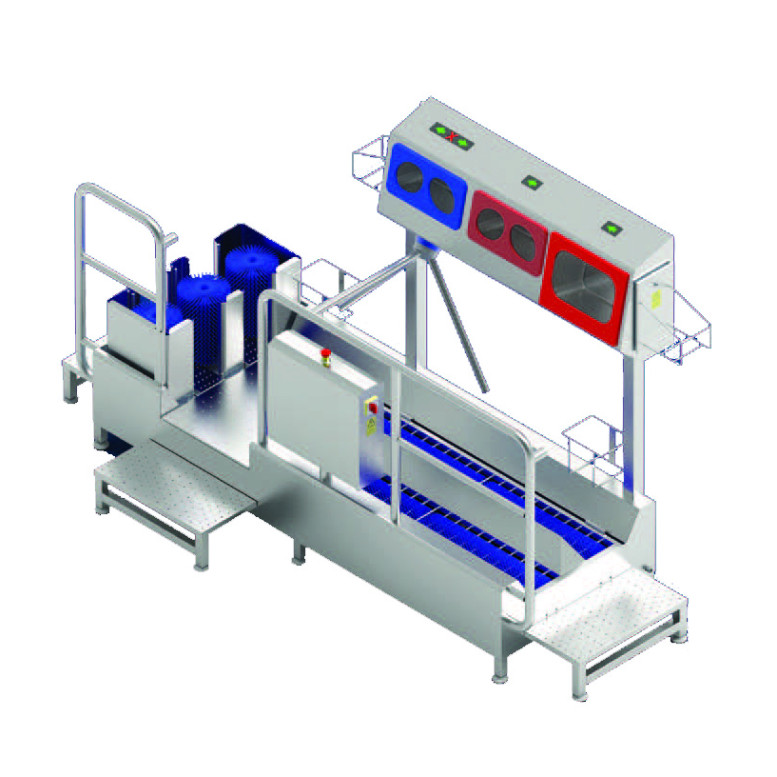

High and Low-heeled Shoe Washer and Hand Washer Dryer Disinfection Unit with Side Exit

Location: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 120 X 54 X 53
Shipping Weight: 690 lbs
CM Product Code: 8062
Financing Available
Note: Shipping to be determined
* Model for Boot Washer with Side Exit:

High and Low-heeled Shoe Washer and Hand Washer Dryer Disinfection Unit with Side Exit


Details related to Washer Length and Brushes

  • Washer made of stainless steel materials 1.4301.
  • Water supply: 1/2”.
  • Water drainage: PVC ø 50 mm.
  • Power supply: 220 V, 60 Hz 3Ph
  • Control: 24V, IP67.
  • Drive: 5 x 0,25 kW or 3 x 0,25 kW, IP55.
  • Washer width: 49 inches
  • Sensors operated.
  • Automatic washing liquids supply.

Details related to Hand Washer, Dryer and Disinfection

  • Make proper hand hygienic activities (washing, drying, disinfection) confirmed by light control (red-green), turns rotary gate about 1/3 of tripod rotation and allows for passage of one person.
  • Basket for 5-liter container of liquid.
  • Programming the times of individual cycles and the amount of provide liquids.
  • Anti-vandalism sound alarm.
  • Controlling voltage: 24 V – PLC Siemens Logo! IP 65.
  • Water supply: 1/2”.
  • Water drainage: PVC ø 16 mm.
  • Emergency passage in case of lack of power supply.
  • Vent air spray buttons.
Model Vertical Brushes Height (inches) Horizontal Brushes Length (inches) Weight (lbs)
03/P - Standard 3 48 437
06/P - Optional 6 48 444
09/P - Optional 12 48 445
