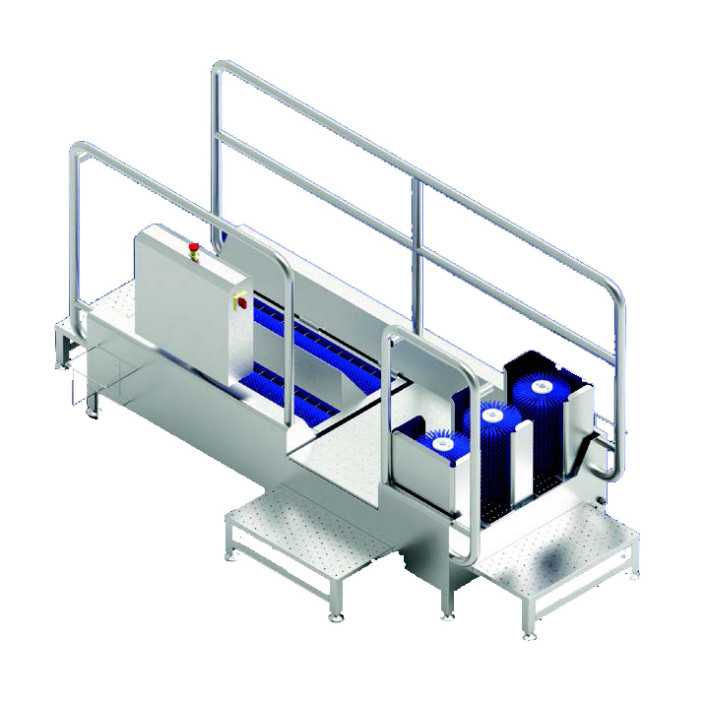

Universal Passage Sole Washer for Low and High Heeled Shoes with Side Exit

Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 120 X 38 X 50
Shipping Weight: 592 lbs
CM: 8054

Financing Available

Note: Shipping to be determined

* Boot Washer with Side Exit:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Universal Passage Sole Washer for Low and High Heeled Shoes with Side Exit

Location: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 120 X 38 X 50
Shipping Weight: 592 lbs
CM Product Code: 8054

Financing Available

Note: Shipping to be determined

* Boot Washer with Side Exit:
--Model 01/P - Standard
--Model 02/P - Optional
--Model 04/P - Optional
--Model 03/P - Optional
--Model 05/P - Optional
--Model 06/P - Optional
--Model 07/P - Optional
--Model 08/P - Optional
--Model 09/P - Optional

Universal Passage Sole Washer for Low and High Heeled Shoes with Side Exit

Washer made of stainless steel materials 1.4301.
Water supply: 1/2”.
Water drainage: PVC ø 50 mm.
Power supply: 220V 60Hz 3Ph
Control: 24V, IP67.
Drive: 5 x 0,25 kW or 3 x 0,25 kW, IP55.
Washer width: 34 inches
Sensors operated.
Automatic washing liquids supply.

Model	Vertical Brushes Height (inches)	Horizontal Brushes Length (inches)	Washer Length (inches)	Weight (lbs)
01/P - Standard	3	24	86	351
02/P - Optional	3	36	93	377
03/P - Optional	3	48	116	437
04/P - Optional	6	24	86	353
05/P - Optional	6	36	93	380
06/P - Optional	6	48	116	437
07/P - Optional	12	24	86	355
08/P - Optional	12	36	93	382
09/P - Optional	12	48	116	437

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Universal Passage Sole Washer for Low and High Heeled Shoes with Side Exit

Washer made of stainless steel materials 1.4301.
Water supply: 1/2”.
Water drainage: PVC ø 50 mm.
Power supply: 220V 60Hz 3Ph
Control: 24V, IP67.
Drive: 5 x 0,25 kW or 3 x 0,25 kW, IP55.
Washer width: 34 inches
Sensors operated.
Automatic washing liquids supply.

Model	Vertical Brushes Height (inches)	Horizontal Brushes Length (inches)	Washer Length (inches)	Weight (lbs)
01/P - Standard	3	24	86	351
02/P - Optional	3	36	93	377
03/P - Optional	3	48	116	437
04/P - Optional	6	24	86	353
05/P - Optional	6	36	93	380
06/P - Optional	6	48	116	437
07/P - Optional	12	24	86	355
08/P - Optional	12	36	93	382
09/P - Optional	12	48	116	437
