Description

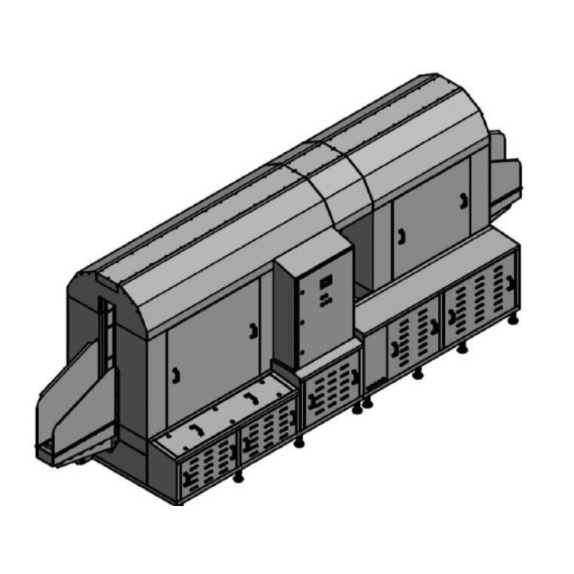

Pallet Washer 100-200

Compact conveying pallet washers for fast and effective cleaning of slight to moderately contaminated plastic pallets.

The unit is divided into a main wash, rinsing zone and drying zone. In the main wash zone the pallets are cleaned with circulating water which is invariably kept at the desired temperature by the installed tank heater. The water of the main wash zone is constantly filtered by an elaborate filtration system. In the rinsing zone the pallets are rinsed with clean fresh water and subsequently conducted into the tank of the main wash zone to be re-used. This procedure achieves minimal water, energy and chemical consumption as well as superb wash results. In the drying zone (Cold-air booster) the crates are air boosted with cold air.

In order to ensure an optimal cleaning of all faces, the pallets are transported by a conveyor chain at even distances through the unit; the installed rotatable. Clip-eyelet flat nozzles ensure an efficient cleaning of the pallets.

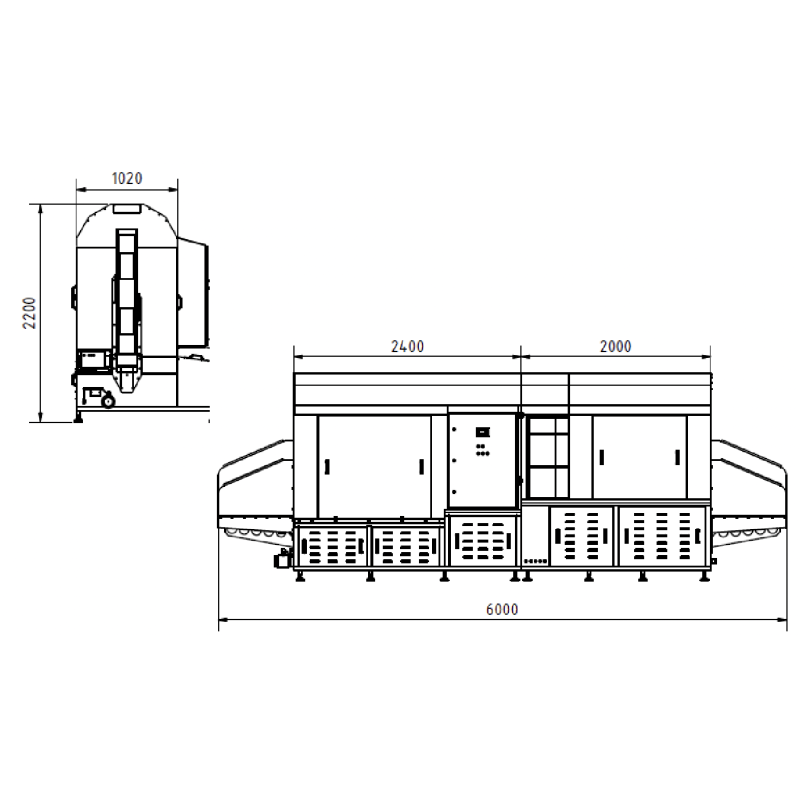

Specifications

Capacity: 100-200 pallets per hour
Pallet transportation: Upright, horizontal

Technical data

Guiding plate IN + OUT:

Length: 800mm
Feature: with built-in roles

Main wash zone:

Length: 1620mm
Tank capacity: 450 liters
Tank heating: 2 x 4kW
Washing temperature: 40 - 65°C adjustable
Nozzles: Clip-eyelet (rotatable flat nozzles)
Filter system: 2 pcs

Rinsing zone:

Length: 780mm
Temperature recommended: 60 - 85°C
Nozzles: flat nozzles

Drying zone:

Length: 1500mm
Blower: 5,5kW

Conveying system:

Conveying system: transport chain
Distance of carrier: 100mm

Heating system:

System: electrical heater
Power: 3 x 9kW

Utility connections:

400V / 50Hz (Other options upon request)
Control voltage: 24V
Water inlet: 3/4“, 1 - 10 bar, Cold- and warm water
Water outlet: 3” – 1 ½“ ball valve

Options

Drying module – Heating system with higher air blowers and uses electric energy
Drying via centris - Pallet spinner to remove excess water with less energy consumption
Water filtration
Fume extraction exhaust system
One-man operation
With conveyor belts
Dosing pump

*Can be customized according to customer requirements*
