Patty-O-Matic 330A Paper Return Bracket

Patty-O-Matic 330A Paper Return Bracket
Patty-O-Matic 330A Paper Return Bracket
Patty-O-Matic 330A Paper Return Bracket  Item#  Description  Part# ... Read More

Available Options

Request Quote
Freezer Patty Paper
Quickview
Freezer Patty Paper
View Details Request Quotes
Patty-O-Matic 330A Crank / Connecting Arm Assembly
Quickview
Patty-O-Matic 330A Crank / Connecting Arm Assembly
View Details Request Quotes
Patty-O-Matic 330A Crank Housing Assembly Side View
Quickview
Patty-O-Matic 330A Crank Housing Assembly Side View
View Details Request Quotes
Patty-O-Matic 330A Crank Shaft Assembly Exploded View
Quickview
Patty-O-Matic 330A Crank Shaft Assembly Exploded View
View Details Request Quotes
Patty-O-Matic 330A Feeder Top View
Quickview
Patty-O-Matic 330A Feeder Top View
View Details Request Quotes
Patty-O-Matic 330A Feeder Washer and Shear Pin
Quickview
Patty-O-Matic 330A Feeder Washer and Shear Pin
View Details Request Quotes
Patty-O-Matic 330A Guard Switch Interior View
Quickview
Patty-O-Matic 330A Guard Switch Interior View
View Details Request Quotes
Patty-O-Matic 330A Hold Down Bolt
Quickview
Patty-O-Matic 330A Hold Down Bolt
View Details Request Quotes

Patty-O-Matic 330A Paper Return Bracket

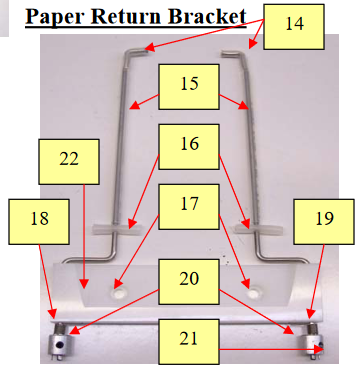

Paper Return Bracket  Item#  Description  Part#
  14 Paper Sleeve Stop  248A
  15 Stainless Steel Paper Pivot Rod  247
  16 Paper Stop  248
  17 2 Return Bracket Mounting Screws  249
  18 Left Return Spring  246L
  19 Right Return Spring  246R
  20 Spring Adjusting Collar  244
  21 Set Screw  245
  22 Pivot Rod Support Bracket  243



Quickview
