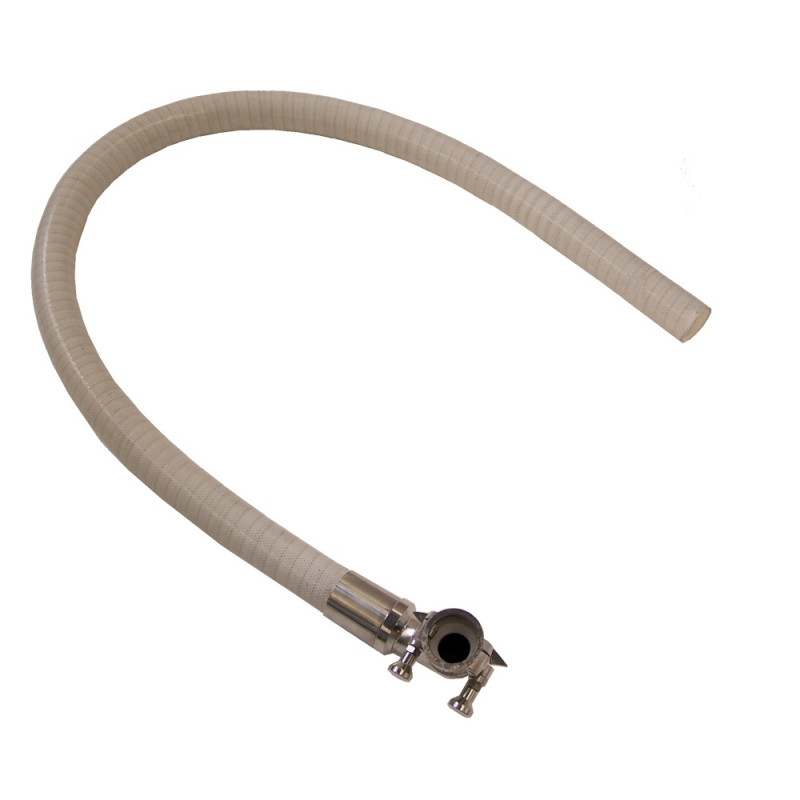

Pressure Hose Exploded View IR56 No. 473 and Higher

Type: 101013
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1698

* Pressure Hose Exploded View IR 56 Facelift No. 473 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email [email protected] Prices are subject to change without notice.

Pressure Hose Exploded View IR56 No. 473 and Higher

Type: 101013
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1698

* Pressure Hose Exploded View IR 56 Facelift No. 473 and higher:
-- F440270 Coupling
-- F240280 Seal
-- F240271 Lever
-- F21712 Pin
-- F240277 Ring
--F20495 Locking bolt

Pressure Hose Exploded View IR56 No. 473 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F440270	Coupling	IR 28/56	1
2	F240280	Seal	Ø 26 x Ø 40 x 6,3	1
3	F240271	Lever	56,5 x 15 x 10	2
4	F21712	Pin	Ø 5,5 x Ø 5,9 x 25	2
5	F240277	Ring	Ø 10,2 x Ø 15 x 7	2
6	F20495	Locking bolt	GN 617-5-G-NI	2
7	F240265	Mushroom-shaped button	M5 - K3025 105	2
