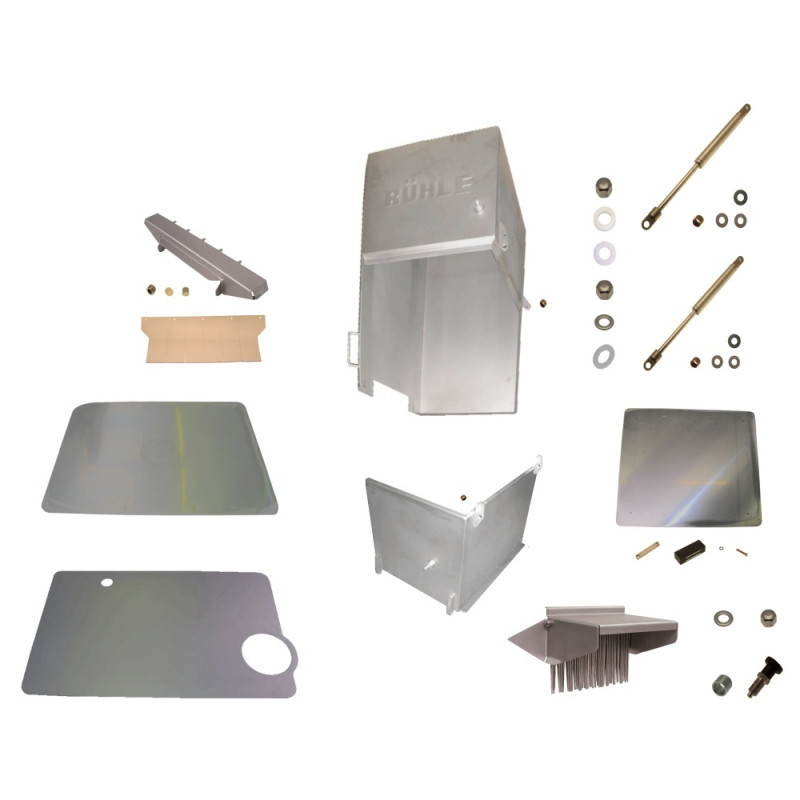

Protection Device Assembly R56 Injector No. 210 and Higher

Type: F42135
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1737

* Protection Device Assembly IR 56 No. 210 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email [email protected] Prices are subject to change without notice.

Protection Device Assembly R56 Injector No. 210 and Higher

Type: F42135
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1737

* Protection Device Assembly IR 56 No. 210 and higher:
-- F240081 Ring
-- 101138 Hood
--F27693 Washer
--F20811 Cap nut
-- F240084 Ring
-- F240084 Ring
--F42155 Gas pressure spring
--F42203 Protective guard
--F240132 bushing
-- F28190 Locking bolt
-- F240084 Ring
--F440126 Hood
--F22888 Washer
-- F20134 Cap nut
--F42154 Gas pressure spring
--F41724d Ring
--F41724d Ring
--F20812 Cap nut
--F20812 Cap nut
--F42156 Protective guard
--101195 Lid
-- 101196 Lid
-- 102276 Lid

Protection Device Assembly for Meat Injector Ruhle IR56 No. 210 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F240081	Ring	Ø 15,2 x Ø 27 x 3	4
2	101138	Hood	IR 28/56	1
3	F27693	Washer	DIN125 A 10,5	2
4	F20811	Cap nut	DIN917 M 10	2
5	F240084	Ring	Ø 12,2 x Ø 24 x 3	2
6	F42155	Gas pressure spring	IR 28/56	1
7	F41724d	Ring	Ø 12,2 x Ø 20 x 3	2
8	F20812	Cap nut	DIN917 M 12	2
9	F42203	Protective guard	IR 28/56	1
10	F240132	Bushing	Ø 16,2 x Ø 22 x 17	1
11	F28190	Locking bolt	GN 617-8-A-Ni	1
12	F240084	Ring	Ø 12,2 x Ø 24 x 3	4
13	F440126	Hood	IR 28/56	1
14	F22888	Washer	DIN125 A 8,4	2
15	F20134	Cap nut	DIN917 M 8	2
16	F240084	Ring	Ø 12,2 x Ø 24 x 3	2
17	F42154	Gas pressure spring	IR 28/56	1
18	F41724d	Ring	Ø 12,2 x Ø 20 x 3	2
19	F20812	Cap nut	DIN917 M 12	2
20	F42156	Protective guard	IR 28/56	1
21	101195	Lid	IR 28/56	1
22	101196	Lid	IR 28/56	1
23	102276	Lid	IR 28/56	1
