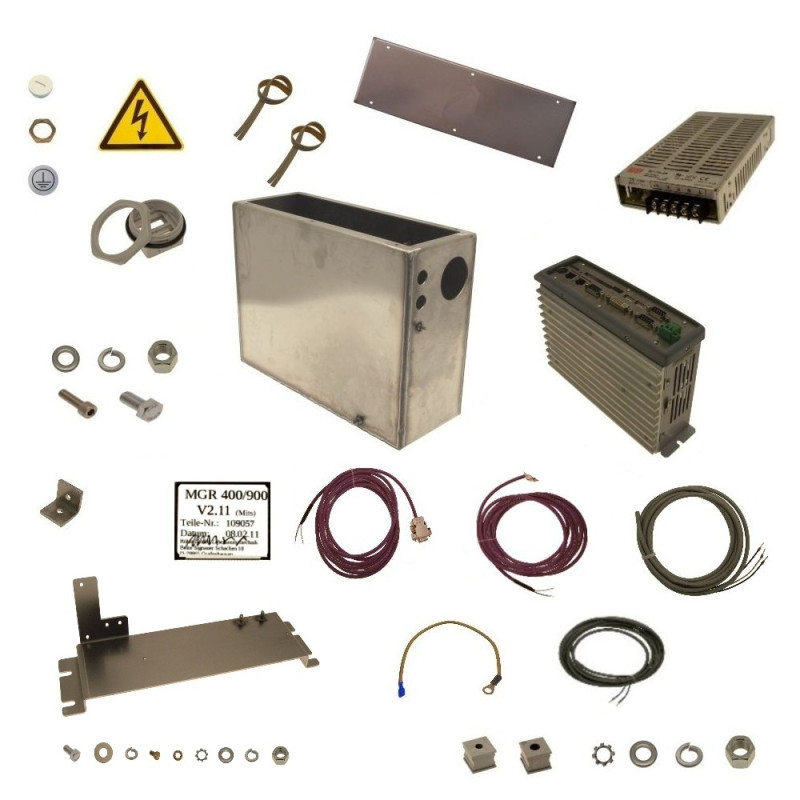

Schaltkasten Assembly Ruhle MGR400 Tumbler No. 12 and Higher
Pos No. | Part No. | Description | Add Info | Required | |
1 | 108770 | Schaltkasten | MGR 400/900/SR2 T | 1 | |
2 | F250691 | Deckel | 410 x 155 x 18 x 2 | 1 | |
3 | F21045 | Washer | DIN125 A 5,3 | 9 | |
4 | F20260 | Spring lock washer | DIN127 B 5 | 7 | |
5 | F20266 | Zylinderschraube | DIN912 M 5 x 10 | 6 | |
6 | F26336 | lock washer | DIN6797-A Ø 5,3 | 1 | |
7 | F25910 | Hexagonal bolt | DIN933 M 5 x 25 | 1 | |
8 | F21028 | Hexagonal nut | DIN934 M 5 | 2 | |
9 | F20664 | Seal | 18 x 3 | 0.23 m | |
10 | F20664 | Seal | 18 x 3 | 0.81 m | |
11 | F26115 | Blindstopfen | M 20 x 1,5 | 2 | |
12 | F25780 | Hexagonal nut | M 20 x 1,5 | 2 | |
13 | F148541 | Sticker | BMK02 | 1 | |
14 | F10131 | Sticker | flash | 1 | |
15 | 106676 | Erdungskabel | Deckel - SK 2 SR 3 / MGR | 1 | |
16 | F251999 | Kabelverschraubung | KVT63-4, grau | 1 | |
17 | F252000 | Kabeltülle | KT 6, grau | 2 | |
18 | 104916 | Kabeltülle | KT 8, grau | 2 | |
19 | 106601 | Rechnerbox | Kuhnke Ventura 800 | 1 | |
20 | 109057 | Compacft Flash | MGR 400/900 V2.11 | 1 | |
21 | 106969 | Winkel | 40 x 40 x 5 | 2 | |
22 | F248631 | Netzteil 230VAC/24VDC | SP75-24 | 1 | |
23 | 108573 | Kabel für Zuleitung Rechnerbox | MGR 400/900/1500 | 1 | |
24 | F22888 | U-Scheibe | DIN125 A 8,4 | 6 | |
25 | F21260 | Federring | DIN127 B 8 | 6 | |
26 | F20259 | Sechskantmutter | DIN934 M 8 | 6 | |
27 | 108572 | BUSkabel IPC - Kuhnke-Platine | MGR 400/900 | 1 | |
28 | 108580 | BUSkabel Platine - Platine | MGR 400/900 | 1 | |
29 | 108358 | Kabel für Zuleitung PC | MGR 400/900 | 1 | |
30 | 107597 | Konsole | alle Typen | 1 |
