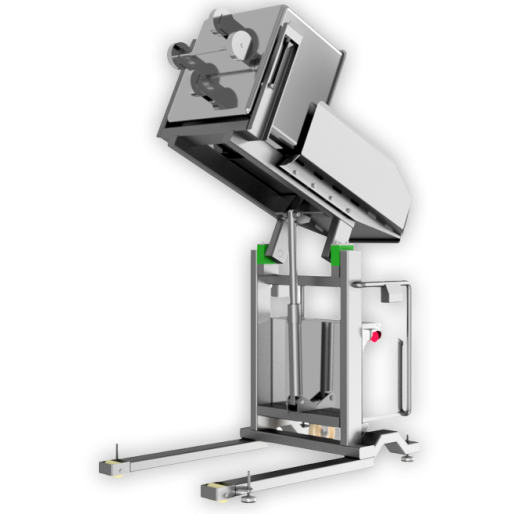

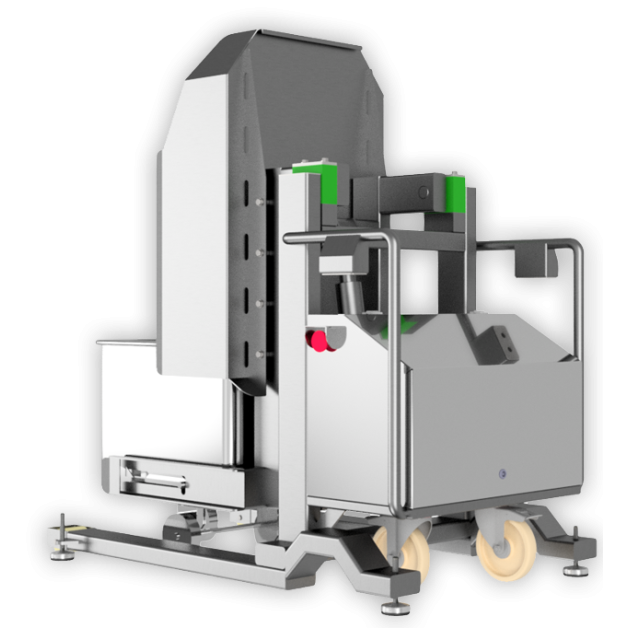

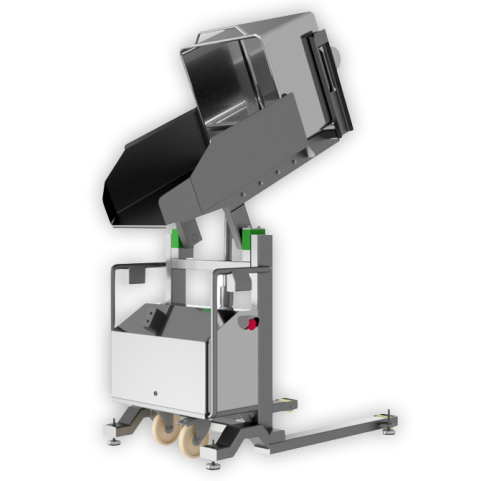

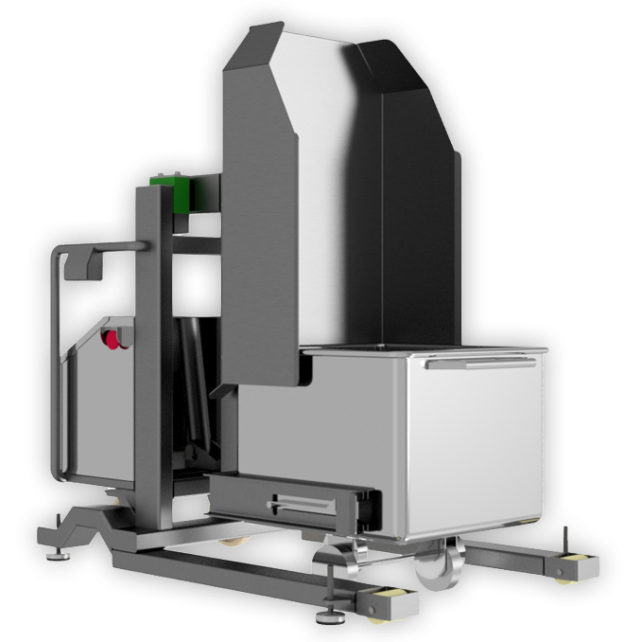

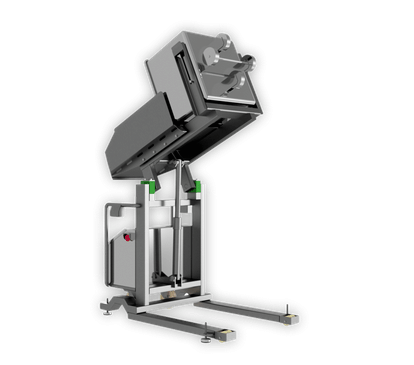

Tipper for 200L and 300L Buggies
The mobile tippers are dedicated to 200- and 300-liter dumpers. The tipper mainly serves trolleys / buggies.
It is a device that will improve the efficiency of unloading processes and speed up production processes in your company. Due to the low weight, the tipper can be easily moved "manually" to places where you need help. The mobile base gives the opportunity to adapt the device to the workplace
Specifications:
- Material: AISI304 Stainless steel
- Tipping angle: 0° to 115°
- Servomotor: Stainless steel
- Hydraulic Lifting System
- Mobile on wheels with brakes
- Audible lowering signal
- Container handle: On the narrower side, along the guides
Technical Data:
- Dumping height: 1000mm
- Max load: 400kg
- Based on Power 220V, Engine Power will be 1.5 KW and Consumption will be 9 Amps.

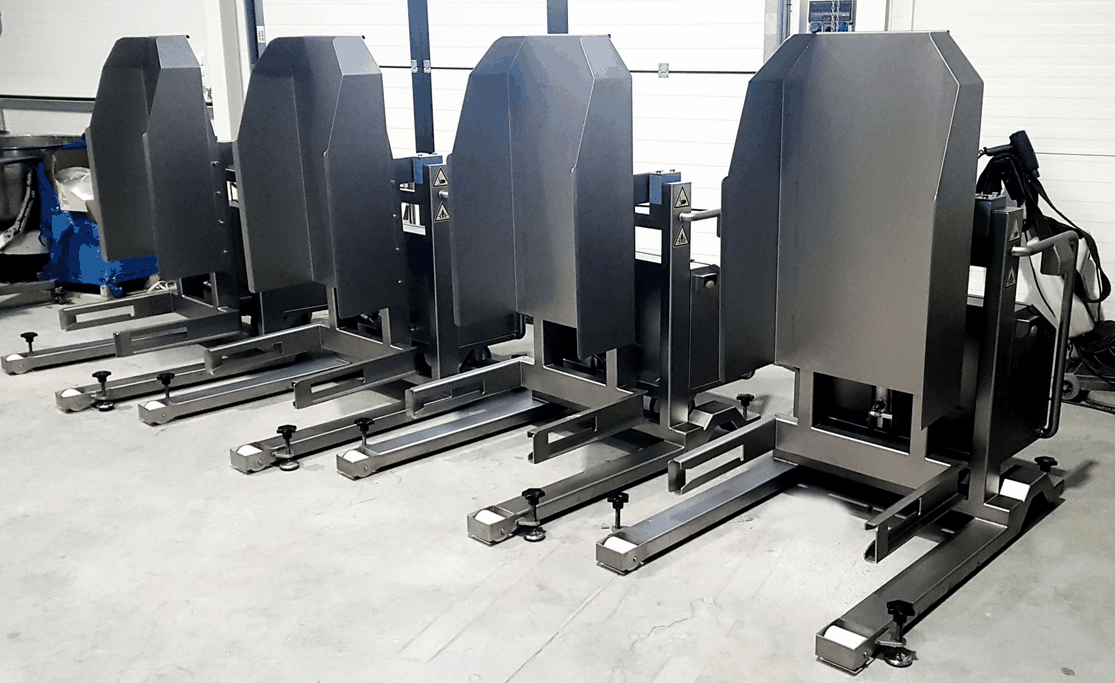

Actual Pictures of Final Product:
