Used CB604 Derinder Machine

Country of Origin: Germany
Ships from: FOB Brampton, Ontario
U/M: Each
Stock: On Order
CM: 8343
Note: Shipping to be determined

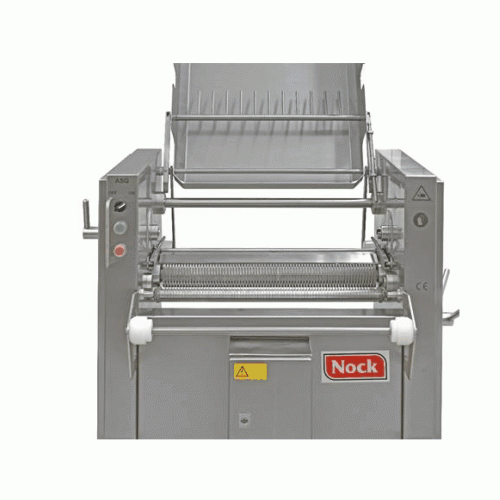

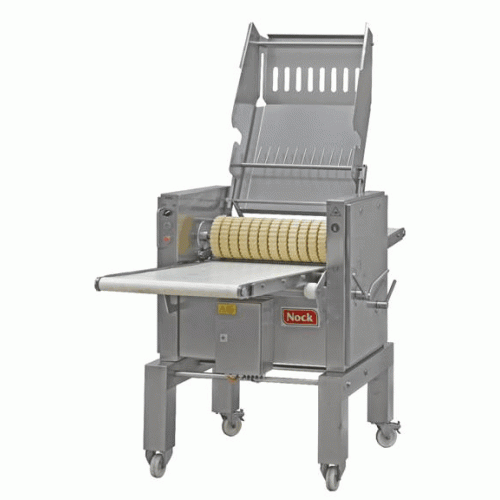

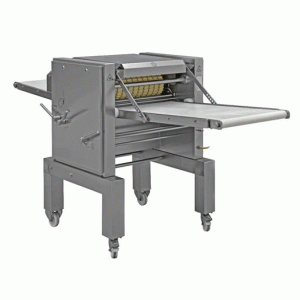

Used CB604 Derinder Machine

We have a second hand CB604 derinder machine with ASG (Nock Active Skin Gripper) in stock. The machine is equipped with a 600mm wide band. This machine was manufactured in 2009 but it was never working outside in a company, it has only been used at an exhibition and as a tester machine, resulting in only being used for very few working hours.

The machine will be delivered completely revised and with the new conveyor belts, the condition of the machine is excellent.

Features and application range:

  1. Infeed conveyor (1070x590 mm)
  2. Discharge conveyor (1070x590 mm)
  3. Cutting width: 600 mm
  4. Cutting speed: 29 m/min
  5. Max height of meat: 120mm

Standard Equipment:

  • Infeed conveyor
  • Discharge conveyor
  • Compact casing with underframe opens on all four sides
  • Blade gap infinitely adjustable
  • Spring suspended blade holder for perfect derinding results
  • Spring suspended pressure roller, additionally continuously variable in height
  • Tooth roller with scraper comb
  • NOCK POWER PLATES for outstanding robustness, service friendliness and smooth and easy to clean surfaces
  • NOCK EASY-FLOW safety cover for reliable product flow and better hygiene during processing
  • Conveyors can be removed within seconds without any tools
  • Lockable castors
  • Material: stainless steel and stainless-steel bearings

Technical Data:

Blade gap (mm)


Apply length on infeed conveyor (mm)


Infeed conveyor (mm)


Discharge conveyor (mm)


Discharge conveyor for removed skin (mm)


Overall dimension W x H x D (mm)


Weight (kg)


Motor performance (kW)


Electrical connection

3 AC - 400 V - 50 Hz

Other voltages upon request
