Industrial equipment expertise you can rely on.
Scope of Application

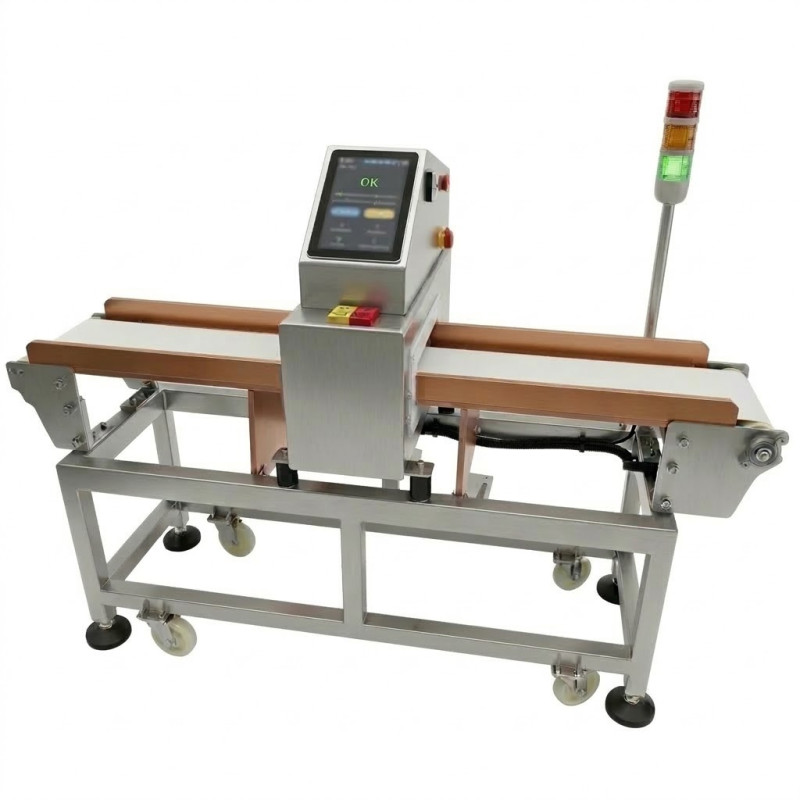

This is mainly used for detecting the metal chips inside any products such as poultry, seafood, ice-cream, frozen food, sugar, tea, pharmaceutical, health care products, etc.
Offered Available Features:
1. Multi-Frequency and Dual-system detection technology

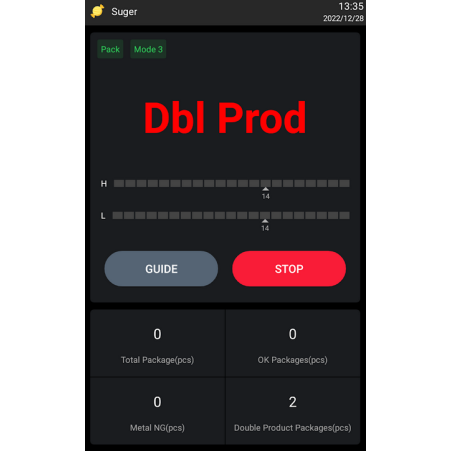

2. 10 inches digital touch screen with android system
3. Large system memory which supports long term recording, fast seeking and recalling
4. Supports graphic based production statistic and analysis
5. High speed and multiple channels DSP
6. 100 products record data capacity
7. Multiple detection mode automatic or manual setup, as preferred
8. Records could be export to USB drive (CSV format)
9. Data export by enthernet port
10. Rejection feedback,air pressure monitor, fill up detection and locked bin optional
Technical specifications:
Standard Tunnel size(above belt): 650(L)*170(W)mm, customizable upon request.
Basic sensitivity (not loaded products): Based on chart selection
Conveyor length standard 1,500mm, belt width 360mm, customizable upon request.
Conveyor height tailored to your requirements, adjustable legs available upon request.
Rejection system: Audible with red light warning alarm, belt stopped automatically.
Belt speed: 10-40 meters/min adjustable, or fixed upon request.
Flow direction: from Right to Left (facing the operation panel) or Opposite.
Operation System and Panel Language: English
Power supply: AC 110/220V, 60Hz, 3Ph
Frame Material: 304 SUS
Weight: 400kg
TIP: The closer the window is to actual product the better the sensitivity.
TIP 2: The height and the width of the window is manufactured according to the product.
