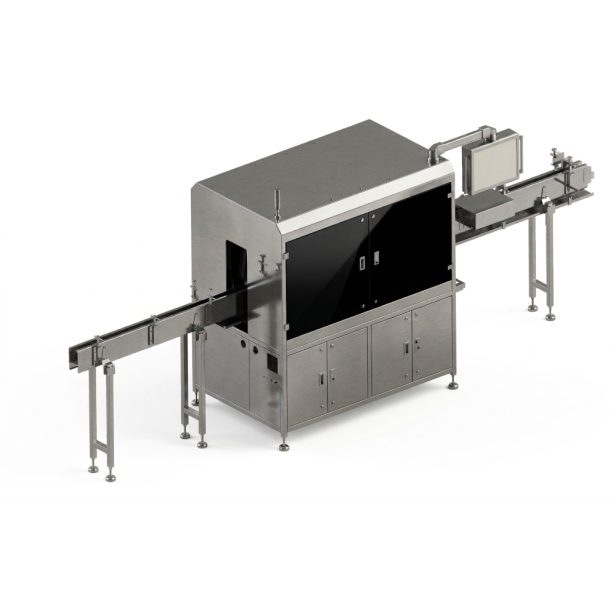

X-Ray Glass and PET Bottle Inspection Machine

X-Ray Glass and PET Bottle Inspection Machine
X-Ray Glass and PET Bottle Inspection Machine
X-Ray Glass and PET Bottle Inspection Machine
X-Ray Glass and PET Bottle Inspection Machine
X-Ray Glass and PET Bottle Inspection Machine
body { font-family: 'Segoe UI', Arial, sans-serif; color: #333; line-heig... Read More
  • Stock: On order
  • Brand: 1298
  • Type: Glass and PET models
Request Quote

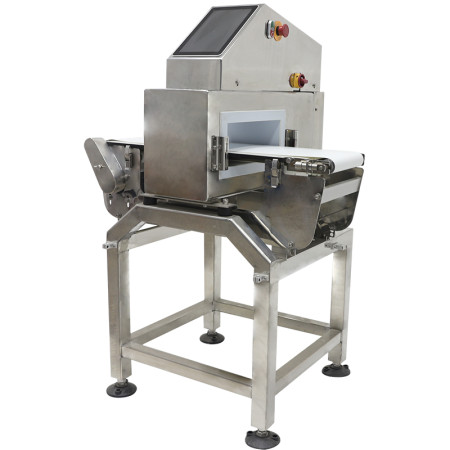

Multifrequency Narrow Belt Metal Detector
Quickview
Multifrequency Narrow Belt Metal Detector
View Details Request Quotes

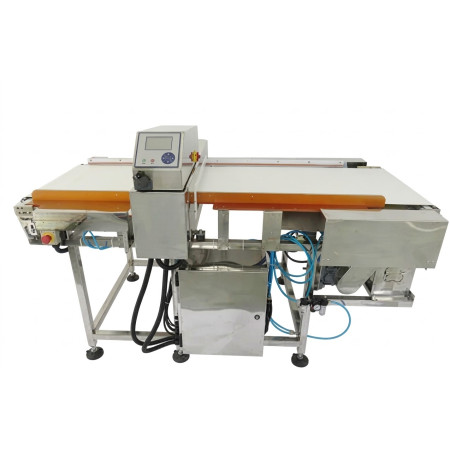

Multifrequency Wide Belt Metal Detector
Quickview
Multifrequency Wide Belt Metal Detector
View Details Request Quotes

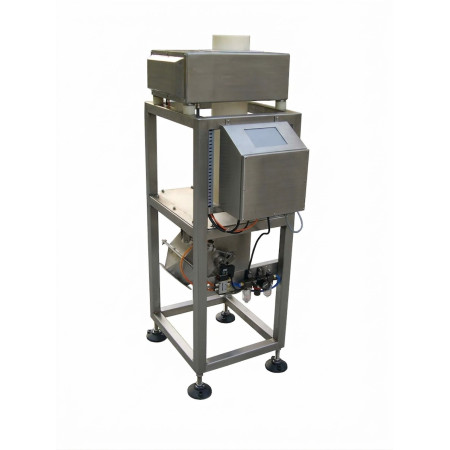

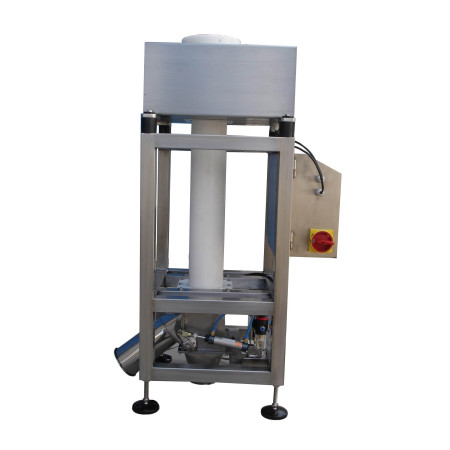

Pipeline Metal Detector
Quickview
Pipeline Metal Detector
View Details Request Quotes

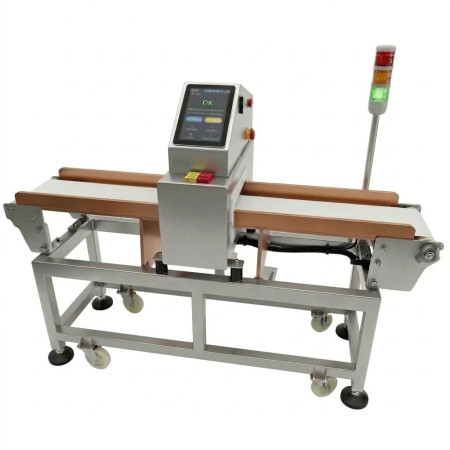

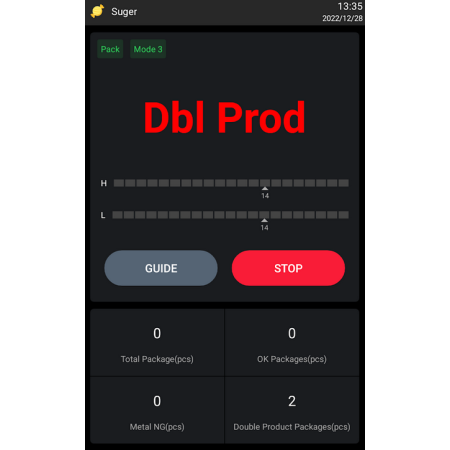

LCD Screen High Sensitivity All-Metal Detector
Quickview
LCD Screen High Sensitivity All-Metal Detector
View Details Request Quotes
Tags: Metal Detectors & X-Ray

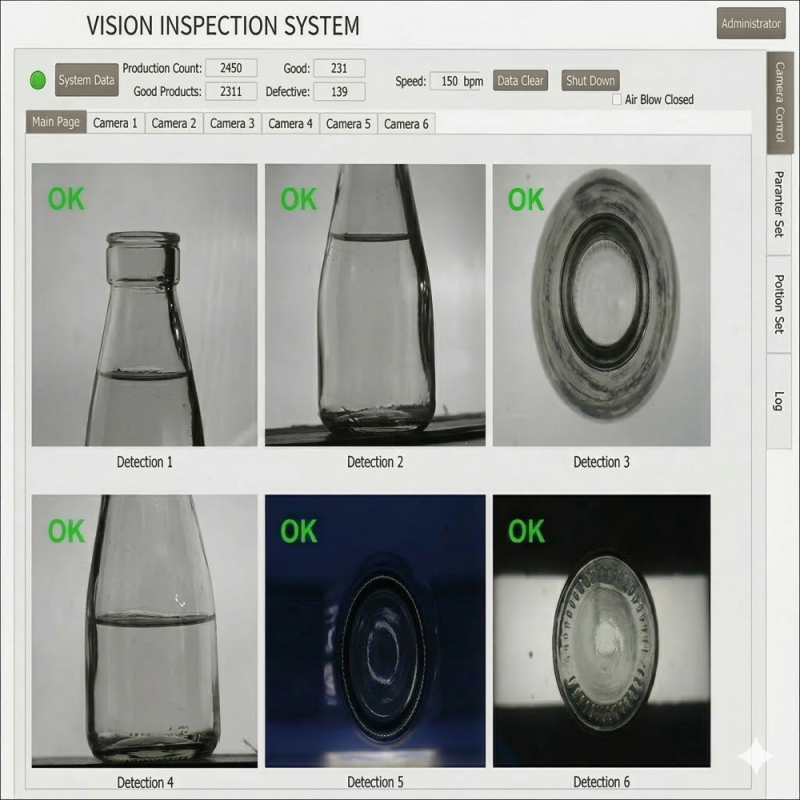

AI-Powered Automatic Visual Bottle Inspection System
Eliminate production risks with 100% quality assurance. Our high-speed AI Visual Bottle Inspection System is engineered for both Glass and PET lines, combining advanced Neural Network algorithms with high-precision industrial imaging. Capable of processing up to 15,000 bottles per hour, the system identifies even the most minute defects.

Technical Datasheet

Parameter Specifications
Inspection Speed 15,000 bottles/hour (BPH)
Detection Accuracy 1mm
Success Rate > 99.99%
Supported Materials Glass and PET Bottles
Core AI Algorithms Neural Networks, Pattern Recognition, OCR
Defect Detection Cracks, broken mouths, oil stains, foreign objects
Imaging System High-precision Industrial Lens + Special Light Source
Rejection Method High-speed Pneumatic Push Rod
Control System Industrial Control Computer + Visual Motion Control
Power Supply AC220V
Operating Temp 0–40°C
