Frozen Block Meat Flaker

Industrial Frozen Block Meat Flaker The commercial-grade Industrial Frozen Meat Flaker repr... Read More

Stock: On order
Type: Capacity: 4,000 kg/hr

Available Options

Electrical Certification

Qty

Request Quote

From Same Category
Same Brand

Quickview

Frozen Block Cutter Ruhle GR 50

View Details Request Quotes

Quickview

PSS Speed Flaker SF 420

View Details Request Quotes

Quickview

PSS Speed Flaker SF 620

View Details Request Quotes

Quickview

PSS Speed Flaker SF 820

View Details Request Quotes

Tags: Frozen Block Cutters & Flakers

Description

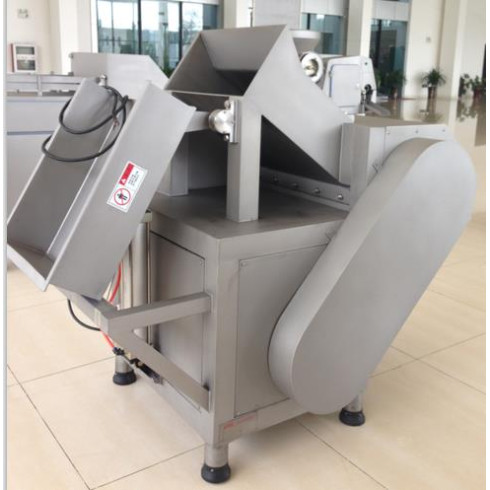

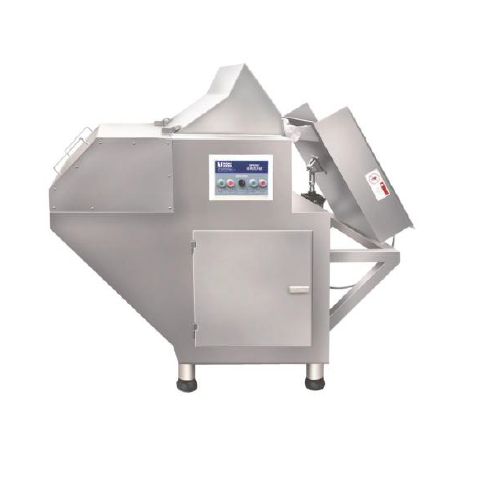

Industrial Frozen Block Meat Flaker

The commercial-grade Industrial Frozen Meat Flaker represents an essential technical asset for modern processing plants looking to automate pre-treatment lines with ultimate safety. Meticulously designed by leading frozen meat cutters manufacturers, this heavy-duty system processes solid, deep-frozen bulk blocks directly without slow, bacteria-prone tempering cycles. If your company is evaluating an efficient frozen meat block flaker machine near me or sourcing the absolute best commercial frozen meat flakers machine in Ontario Canada, this automated workhorse delivers massive line outputs. Outfitted with high-traction alloy knives, it shaves down frozen blocks smoothly and quietly, preparing the material into ideal flakes for swift downstream grinding, mixing, or bowl cutting. By shaving instead of crushing, it eliminates material friction heat, protects core protein fibers, minimizes valuable drip loss, and retains standard raw product quality flawlessly.

Key Features & Mechanical Advantages

Massive Industrial Performance: Drives massive production outputs with a continuous shredding capacity of up to 4,000 kg per hour, accelerating processing schedules.
Pristine Rear-Mounted Pneumatics: The main heavy-duty pneumatic lifting cylinder is mounted vertically at the far rear, keeping it completely isolated from the raw meat feed track to prevent grease or utility contamination.
Integrated Block Lifting Device: Equipped standard with an integrated pneumatic lifting cradle to lift heavy frozen Euro-blocks effortlessly from floor level, saving labor and shielding operators from strain.

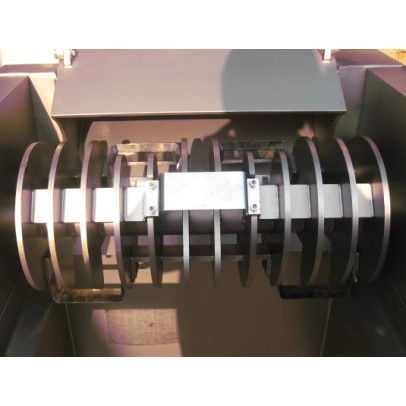

Superior Alloy Steel Knives: The cutting drum is outfitted with specialized superior alloy steel knives featuring ultra-sharp edges to guarantee reliable shaving cuts through dense frozen blocks.
Low Noise & Balanced Vibration: Heavy-duty internal structural balances minimize workplace noise and vibration levels, ensuring long-term bearing protection and quiet shop floor operation.
Premium SUS304 Stainless Build: Fabricated entirely from heavy food-grade SUS304 stainless steel with smooth radius corners for fast, comprehensive chemical washdowns.

Technical Product Specifications

Continuous Hourly Yield	Up to 4,000 kg / hour
Input Core Temperature Range	-18°C to 0°C (Deep-Frozen Block Processing)
Maximum Raw Block Sizing Limits	650 mm × 500 mm × 180 mm (L × W × H)
Maximum Allowable Block Weight	≤ 40 kg per individual meat block
Feed Chamber Access Clearances	Access Width: 540 mm \| Access Height: 200 mm
Selectable Output Flake Thickness	5 mm, 10 mm, 20 mm, or 30 mm (Configured at order option)
Pneumatic Utility Pressure	4 - 5 kg / cm² (Compressed Air Line Network)
Total System Drive Motor Power	7.5 kW Heavy-Duty High-Torque Engine
Machine Net Base Dimensions	1750 mm × 1000 mm × 1500 mm (L × W × H)
Equipment Structural Weight	600 kg (approx. 1,322.7 lbs.)

⚙ Modular System Customization Options

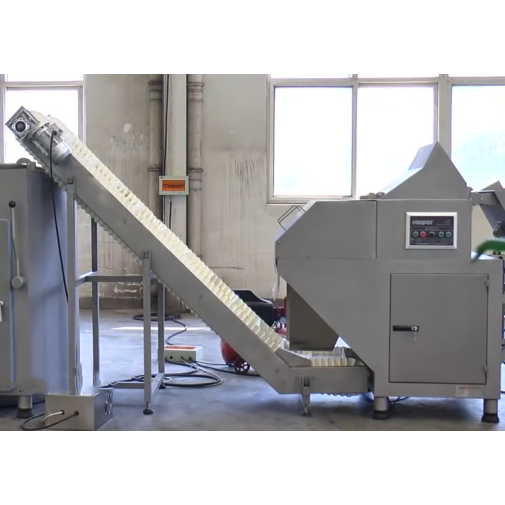

This processing block flaker can be customized with an optional automated discharge conveyor belt system equipped with an integrated chute guide. This upgrade transfers shaven meat flakes seamlessly away from the cutter block and drops them directly into subsequent meat buggies, mixers, or large emulsifier hoppers for a fully hands-free workflow.

* Note: Engineered with a clean, fully enclosed SUS304 structural alloy framework. The streamlined geometry eliminates food traps, facilitating ultra-fast daily washdowns and complete compliance with global food inspection safety codes.
