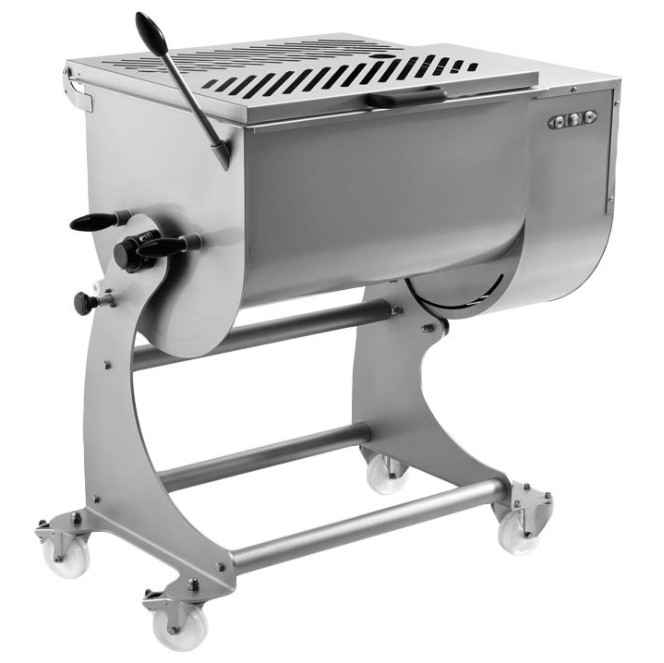

Meat Mixer T-Type Heavy Duty Series
The commercial-grade Heavy Duty Meat Mixer T-Type series represents a premium processing solution engineered by CM Machine Services to execute fast, continuous blending on intense production floors. If your processing facility, busy butcher shop, or supermarket commissary is evaluating a high-torque meat mixer line or source-matching an ultra-reliable, automated tilting meat mixer setup, this versatile platform provides exceptional batch flexibility. Available across an adaptive capacity matrix supporting 80L, 120L, and up to a high-volume meat mixer with 180 L capacity, it handles everything from dense, compact cold sausage formulas to fragile deli salad bases flawlessly. The specialized horizontal T-type paddle orientation ensures a highly homogeneous distribution of ingredients and spices without friction heat buildup, cellular bruising, or product smearing—preserving a loose-knit, natural texture over continuous shifts.
- Premium AISI 304 Construction: Modern, high-strength chassis fabricated entirely from heavy-duty food-grade stainless steel for complete sanitary protection.
- Ergonomic Tilting Tank: Outfitted with an automatic mechanical locking system and secondary fail-safe safety lock to facilitate rapid, smooth batch unloading.
- Toolless Paddle Extraction: The high-precision AISI 304 stainless steel mixing arms drop out easily by hand without tools, simplifying product changeovers and daily sanitizing washdowns.
- High-Security Microswitch Protection: Complete stainless steel top safety cover integrates an automated cutoff switch that freezes all mechanical motion instantly when raised.
- Total Gearbox Isolation: Engineered with an advanced double-seal system between the active mixing tub and the transmission loop, completely protecting the internal gear engine from moisture and fluid ingress.
- IP67 Waterproof Controls: Features flush-mounted, hygienic stainless steel control buttons rated to an excellent IP67 water-resistance standard, equipped standard with simple drive-inversion tracking.
| Performance Parameter | Model MES80 | Model MES120 |
|---|---|---|
| Hopper Fluid Capacity | 80 Liters | 120 Liters |
| Active Mixing Paddles | 1 Paddle Arm Array | 2 Paddle Arm System |
| Electric Drive Motor Power | 0.53 kW (0.72 HP) | 1.10 kW (1.49 HP) |
| Standard Electrical Grid Target | 220V / 50Hz / 3Ph | 220V / 50Hz / 3Ph |
| Machine Dimensions (L × W × H) | 40 × 25 × 41 inches | 43 × 28 × 41 inches |
| Equipment Structural Weight | 222 lbs. (~100.7 kg) | 308 lbs. (~139.7 kg) |
???? Engineering Dimensions Blueprint Reference
* Note: Outfitted with lockable high-traction stainless steel swivel casters to enable rapid floor repositioning. The completely smooth internal basin corners allow for lightning-fast washdowns, ensuring your crew maintains full compliance with local regulatory food safety inspections.
