Nock Cortex CB 503 Kebab Cutting Machine The industrial-grade Nock Cortex CB 503 Kebab Cutt... Read More

Available Options

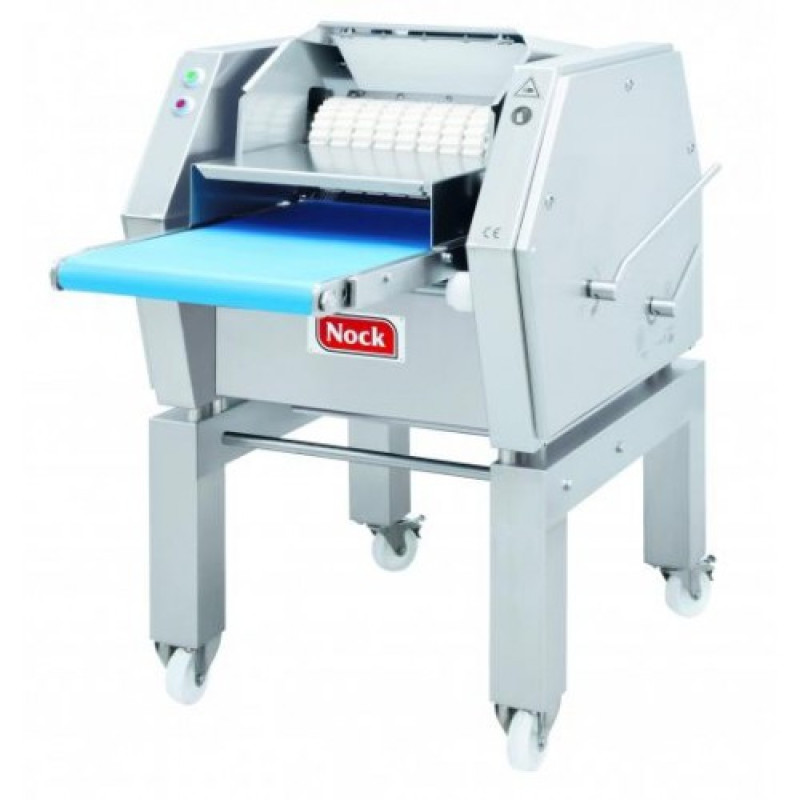

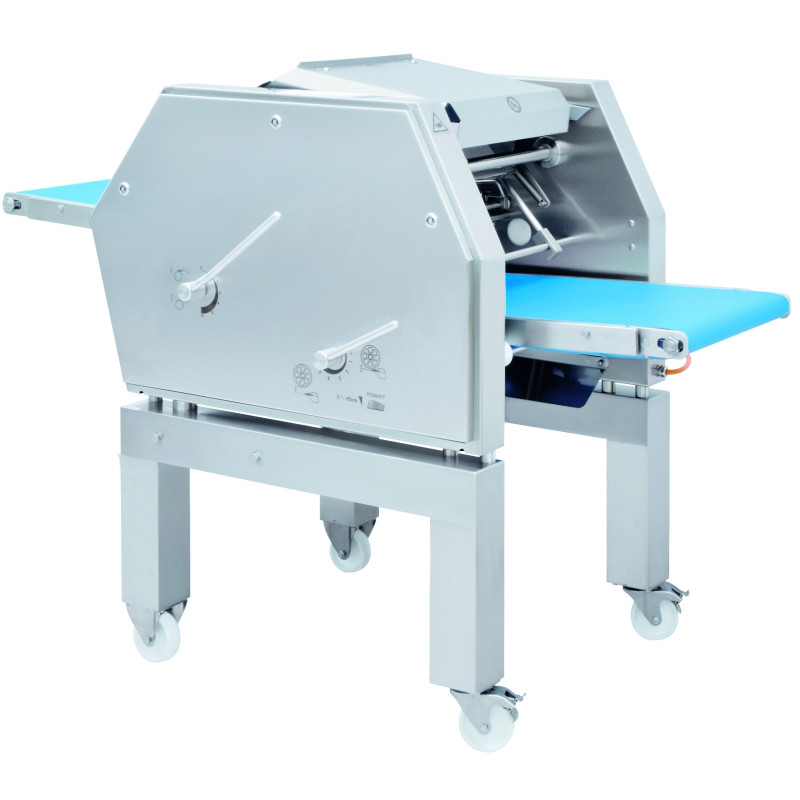

Nock Cortex CB 503 Kebab Cutting Machine

The industrial-grade Nock Cortex CB 503 Kebab Cutting Machine is a high-throughput horizontal processing solution meticulously engineered for professional gyros, skewer, and doner production lines. If you are shopping for the absolute best slice cutting machines near me or looking to deploy premier Nock cutting machines for Gyros and skewers, this robust system brings unmatched automation to your plant floor. Purpose-built to function as an advanced commercial gyros cutting machine or multi-lane doner slicer, this model boasts a spacious 500 mm cutting width paired with a spring-suspended pressure unit that is infinitely variable in height. Choosing the Cortex CB 503 Kebab in Ontario Canada guarantees flawless horizontal meat division, pristine portion aesthetics, and maximized yield recovery across intensive high-capacity **kebab cutting** shifts.

Key Features & Mechanical Advantages

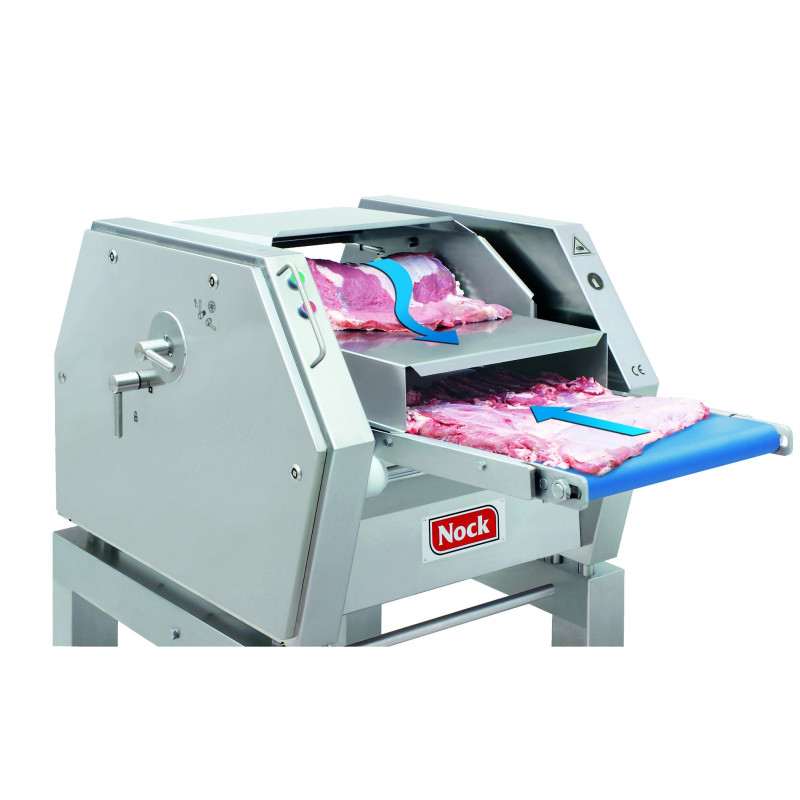

  • Advanced Meat Slicing Geometry: The specialized blade holder, pulling tooth roller, and spring-suspended pressure roller are specifically engineered to cut fresh meats. This system guarantees a cleaner cut and more careful texturing compared to converted industrial derinders.
  • Dynamic Blade Gap Micro-Adjustments: Features an extra-wide blade gap threshold that can be dynamically altered on-the-fly directly during active processing operations.
  • Hygienic Polygon Design: Compact polygon structural housing features a rigid underframe that is wide open on all four sides to facilitate effortless washdown sanitizing.
  • 15mm NOCK Power Plates: High-rigidity internal mechanical structural plates provide outstanding chassis robustness, continuous mechanical alignment, and smooth, easy-to-clean surfaces.
  • Toolless Cleaning Breakdown: Infeed and discharge conveyor belt assemblies can be completely detached from the stainless steel frame within seconds without tools, reducing labor overhead.
Optimized Product Application Range

Engineered specifically for the high-precision horizontal slicing of boneless whole-muscle meats. This automated system offers exceptional throughput optimization for processing veal breast sections, bull beef, fresh pork loin slabs, turkey breast cuts, and lamb primals.

Technical Product Specifications
Operational Cutting Width 500 mm
Linear Slicing Speed 28 meters per minute
Product Cutting Direction Horizontal Planar Slicing
Max. Throughput Height Clearance 90 mm
Blade Gap Thickness Range 0.5 - 8 mm (Infinitely Adjustable | Alternative custom calibrations available)
Infeed Conveyor Area Track 850 mm x 490 mm (Apply length: 400 mm with Integrated NOCK Product Return System)
Sliced Meat Discharge Conveyor Size 850 mm x 490 mm
Overall Dimensions (W x H x D) 980 mm × 1190 mm × 1360 mm
Equipment Structural Weight 235 kg (approx. 518.1 lbs)
Motor Performance Rating 1.1 kW High-Efficiency Slicing Drive
Electrical Network Connection 3 Ph - 400 V - 50 Hz
(Alternative global voltage configurations such as 220V, 480V, or 575V 60Hz provided upon custom factory order)

* Note: Engineered entirely from food-grade stainless steel with specialized stainless steel bearings and lockable swiveling castors. The rigid architecture of the Cortex CB 503 pairs commercial safety with high durability to ensure precision results under constant industrial shifts.
