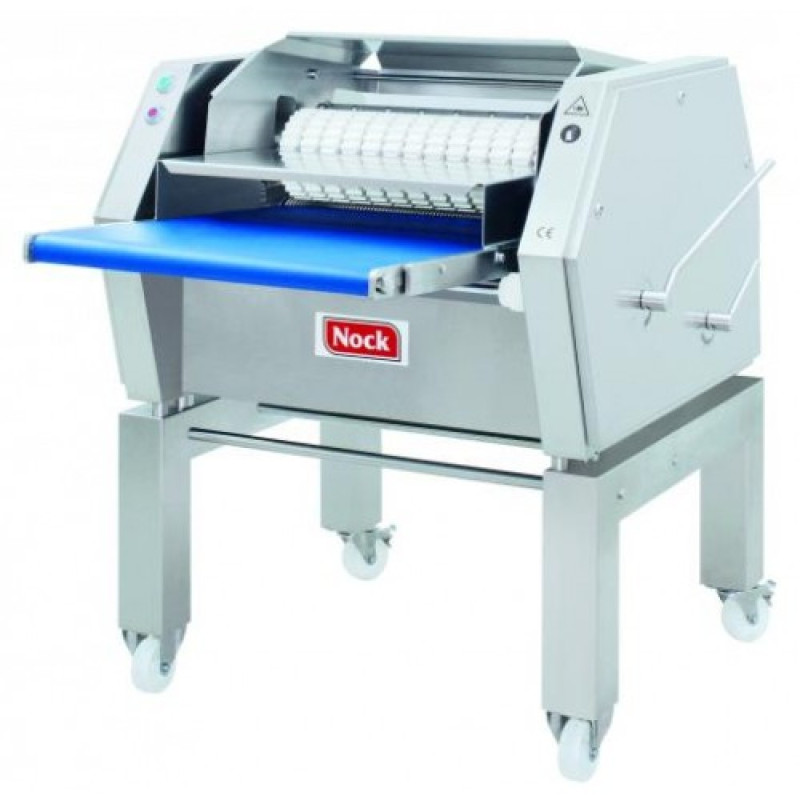

Nock Cortex CB 703 Kebab Cutting Machine

The high-output Nock Cortex CB 703 Kebab Cutting Machine is an expansive, industrial-grade horizontal processing system engineered specifically for high-volume gyros, skewer, and doner manufacturing lines. If your processing plant is looking to deploy premium Nock gyros and kebab cutting machines near me or sourcing the absolute best kebab cutting machines in Canada, this extra-wide system provides massive throughput capabilities. Built as a premier choice among modern commercial gyros cutting machine models and heavy-duty doner slicer arrays, it features an impressive 700 mm cutting width. Its spring-suspended pressure unit adapts automatically to raw muscle contours, ensuring a premium, high-quality slice cutting machine performance that yields exceptionally uniform slices for professional doner meat skewers.

Key Features & Mechanical Advantages
  • Advanced Meat Slicing Geometry: The specialized blade holder, pulling tooth roller, and spring-suspended pressure roller are specifically engineered to cut fresh meats. This system guarantees a cleaner cut and more careful texturing compared to converted industrial derinders.
  • Dynamic Blade Gap Micro-Adjustments: Features an extra-wide blade gap threshold (0.5 - 8 mm) that can be dynamically altered on-the-fly directly during active processing operations.
  • Hygienic Smart Logistics: Thanks to the streamlined open chassis, standard industrial meat trolleys or collection bins can be placed directly underneath the cutting zone to harvest slices without needing an output conveyor.
  • 15mm NOCK Power Plates: High-rigidity internal mechanical structural plates provide outstanding chassis robustness, continuous mechanical alignment, and smooth, easy-to-clean surfaces.
  • Toolless Cleaning Breakdown: Infeed and discharge conveyor belt assemblies can be completely detached from the stainless steel frame within seconds without tools, reducing labor overhead.
Optimized Product Application Range

The Cortex CB 703 is masterfully optimized for the horizontal planar slicing of boneless whole-muscle meats. It is perfectly appropriate for cutting high-quality, large-surface slices of veal breast sections, bull beef, pork primal cuts, turkey breast meat, and lamb sections.

Technical Product Specifications
Operational Cutting Width 700 mm
Linear Slicing Speed 28 meters per minute
Product Cutting Direction Horizontal Planar Slicing
Max. Throughput Height Clearance 90 mm
Blade Gap Thickness Range 0.5 - 8 mm (Infinitely Adjustable | Alternative custom calibrations available)
Infeed Conveyor Frame Size 850 mm x 690 mm (Apply length: 400 mm with integrated product return system)
Sliced Meat Discharge Conveyor Size 850 mm x 690 mm
Overall Dimensions (W x H x D) 1065 mm × 1190 mm × 1360 mm
Equipment Structural Weight 300 kg (approx. 661.4 lbs) without output conveyor assembly
Motor Performance Rating 1.1 kW High-Efficiency Slicing Drive
Electrical Network Connection 3 Ph - 400 V - 50 Hz
(Alternative global voltage configurations provided upon custom factory order)
Available Modular Options & Upgrades
  • INTEGRATED NOCK PRODUCT RETURN SYSTEM: Highly recommended mechanical upgrade that automatically returns uncut remaining meat blocks to the operator feed conveyor for rapid, single-user multi-pass slicing.
  • Dedicated separate discharge conveyor belt designed for residual uncut meat blocks (cannot be combined with the integrated product return system).
  • Multi-cut continuous line integration arrays.

* Note: Manufactured entirely from premium food-grade stainless steel with specialized stainless bearings, an aggressive pulling tooth roller, and lockable swiveling castors. Meets rigid global sanitation standards for continuous industrial use.
