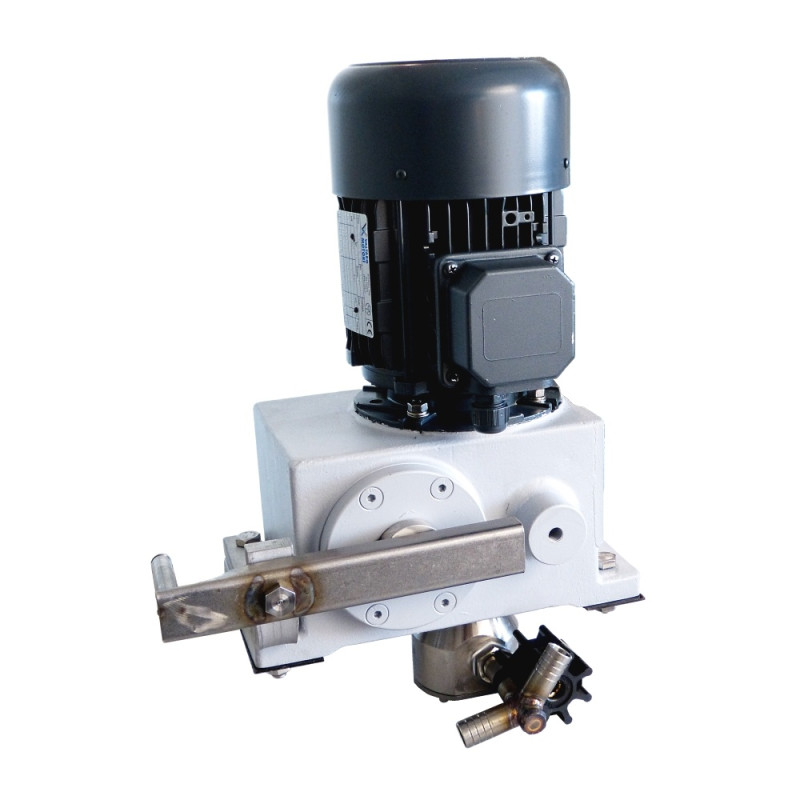

Gear Box Complete Ruhle PR15 No. 3649 and Higher Injector
| Pos No. | Parts No. | Description | Add Info | Required | |
 |
1 | 111975 | Getriebe | PR 8 - 15 | 1 |
 |
2 | F25274 | Worm | Ø 24 x Ø 58 x 65 | 1 |
 |
3 | F20199 | Capstan nut | M 22 x 1.5 | 1 |
 |
4 | F25432 | Threaded pin | DIN914 M 6 x 10 | 1 |
 |
5 | F20201 | Bracket | 198,2 x 88,1 x 30 x 15 | 1 |
 |
6 | F20202 | Washer | DIN125 A 13 | 5 |
 |
7 | F20203 | Hexagonal nut | DIN934 M 6 | 4 |
|
8 | F20204 | Hexagonal nut | DIN934 M 12 | 5 |
 |
9 | F20210 | Spring lock washer | DIN127 B 12 | 4 |
 |
10 | F20214 | Slide bushing | DIN1850 Ø 15 x Ø 20 x 15 | 1 |
 |
11 | F20229 | Hexagonal bolt | DIN933 M12 x 60 | 2 |
 |
12 | F20230 | Hexagonal bolt | DIN933 M12 x 40 | 2 |
|
13 | F20259 | Hexagonal nut | DIN934 M 8 | 4 |
|
14 | F21260 | Spring lock washer | DIN127 B 8 | 4 |
|
15 | F22888 | Washer | DIN125 A 8,4 | 4 |
|
16 | F24031 | Spring lock washer | DIN127 B 6 | 4 |
 |
17 | F27669 | bolt | SW 19 x 53,8 | 1 |
 |
18 | F27788 | Tapered ball bearing | DIN628 - 3201 2RS | 1 |
 |
19 | F257892 | Plate | 170 x 50 x 2.3 | 2 |
 |
20 | F10002 | Oil | BMB 220 graphite additive | 0.4 l |
 |
21 | F10140 | Low-viscosity grease | Low-viscosity grease | 1.5 l |
 |
22 | F40031 | Forward feed | PR 8 - 15 | 1 |
 |
23 | F40254 | Impeller pump | PR 8 - 20 | 1 |
 |
24 | 109863 | Gear motor | M90S-4 | 1 |
