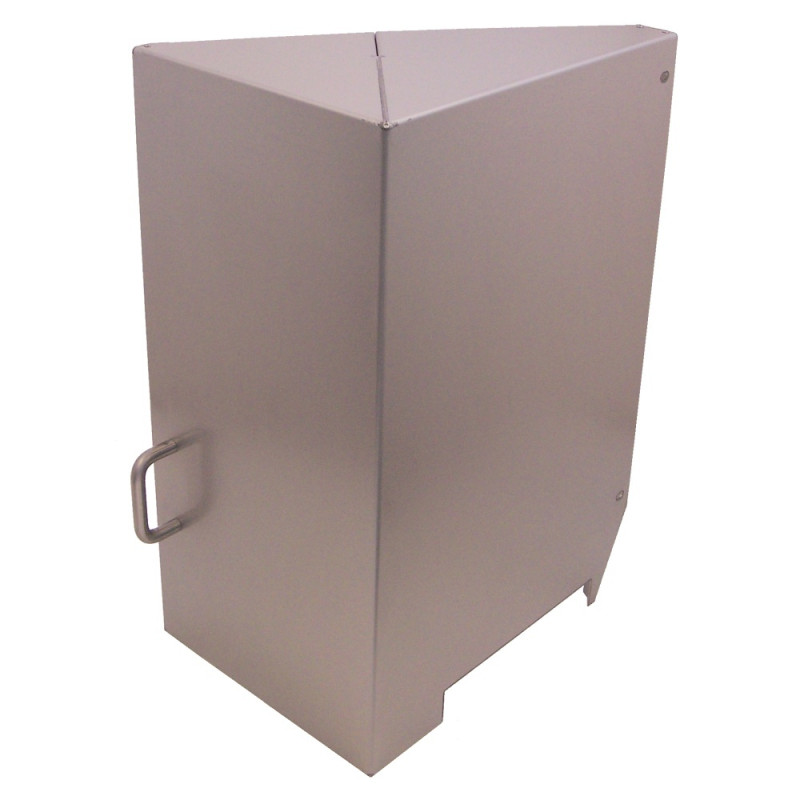

Hood Complete 1 Ruhle IR56 Injector
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 105659 | Profile | 898 x 574 x 430 x 2,5 | 1 |
 |
2 | 105657 | plate / sheet | 42 x 42 x 4 | 2 |
 |
3 | 105652 | handle | Ø 20 x 150 x 83 | 1 |
 |
4 | 105568 | Hinge | 219-9108.00-0000 | 2 |
 |
5 | F27693 | Washer | DIN125 A 10,5 | 2 |
 |
6 | F20811 | Cap nut | DIN917 M 10 | 2 |
 |
7 | 105649 | bolt | Ø 15 x 33 | 1 |
 |
8 | 105650 | bushing | Ø 30 x Ø 10,3 x 19 | 1 |
 |
9 | F21057 | Ring | Ø 10 x Ø 22 x 2,5 | 1 |
 |
10 | 105653 | bolt | Ø 17 x 18 | 1 |
 |
11 | F248868 | Slide bearing | DIN1850 - J10 x 12 x 10 | 1 |
|
12 | F20134 | Cap nut | DIN917 M 8 | 6 |
|
13 | F22888 | Washer | DIN125 A 8,4 | 2 |
