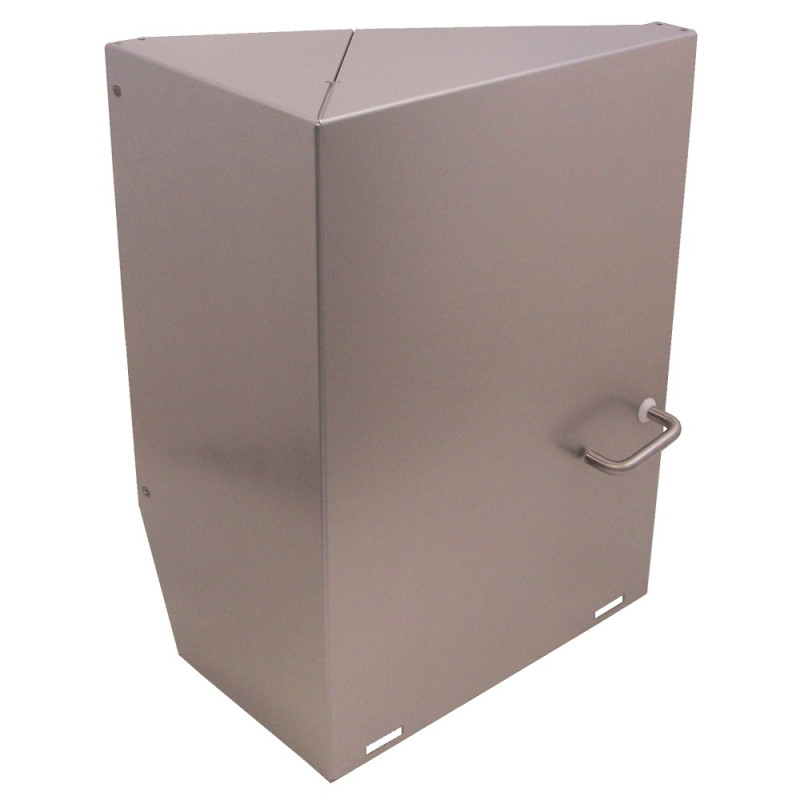

Hood Complete Ruhle IR56 Injector
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 105657 | plate / sheet | 42 x 42 x 4 | 2 |
 |
2 | 105659 | Profile | 898 x 574 x 430 x 2,5 | 1 |
 |
3 | 105568 | Hinge | 219-9108.00-0000 | 2 |
 |
4 | 105655 | Ring | Ø 38 x 12,5 | 1 |
 |
5 | 105651 | handle | Ø 20 x 165,5 x 150 | 1 |
 |
6 | F29331 | Ring | Ø 17,2 x Ø 30 x 3 | 1 |
 |
7 | F252764 | Hexagonal nut | DIN439 M 16 x 1,5 | 1 |
 |
8 | 105654 | Pin | Ø 30 x 13 | 1 |
 |
9 | 105644 | plate / sheet | 76,7 x 73,4 x 6 | 1 |
 |
10 | 102631 | Disc | Ø 6,5 x Ø 15 x 3 | 1 |
 |
11 | F21047 | Hexagonal bolt | DIN933 M 6 x 12 | 1 |
 |
12 | 105656 | bolt | Ø 15 x 37 | 1 |
 |
13 | F20134 | Cap nut | DIN917 M 8 | 6 |
 |
14 | 105569 | blind rivet | Ø 4 x 10 | 11 |
