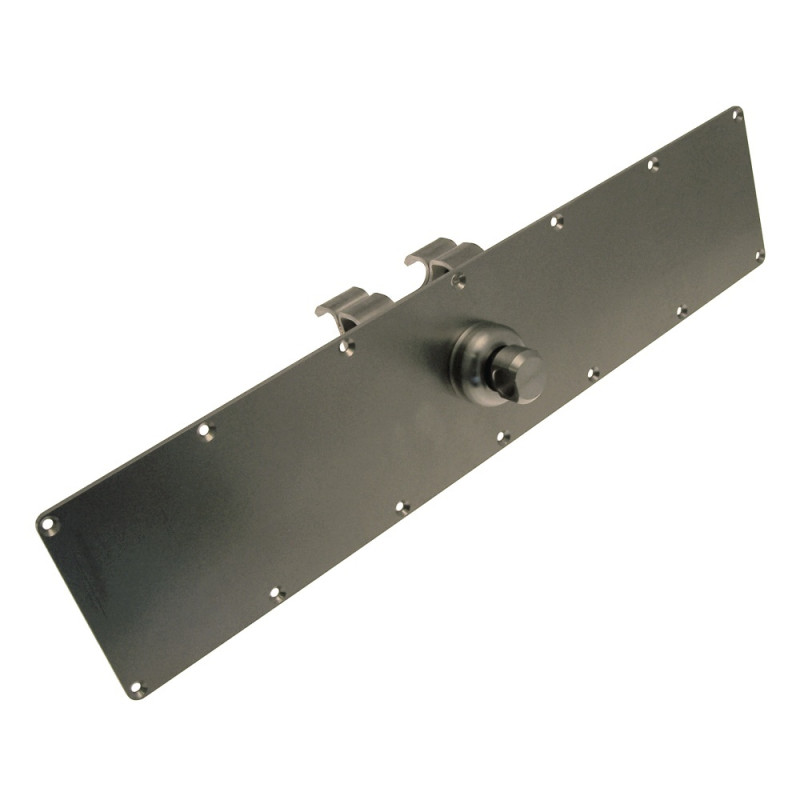

Lid Exploded View IR56 No. 612 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F29305 | plate / sheet | 593,6 x 133,6 x 4 | 1 |
 |
2 | F240777 | Nut | M 36 x 2 x SW 60 x 6 | 1 |
 |
3 | 105668 | Shaft | Ø 35 x 177 | 1 |
 |
4 | 105851 | plate / sheet | 110 x 73 x 30 x 4 | 2 |
 |
5 | F245085 | Nut | M 20 x 1,5 x SW 30 x 34 x 6 | 1 |
 |
6 | F20203 | Hexagonal | DIN934 M 6 | 2 |
 |
7 | F20258 | Washer | DIN125 A 6,4 | 4 |
 |
8 | F24031 | Spring lock washer | DIN127 B 6 | 2 |
 |
9 | F26033 | Hexagonal bolt | DIN933 M 6 x 20 | 2 |
 |
10 | F29307 | Guide | Ø 26 x Ø 55 x 40 | 1 |
 |
11 | F29194 | Slide bearing | GSM-2528-30 | 1 |
 |
12 | F29138 | Scraper | 25 x 33 x 4/7 | 1 |
 |
13 | F26741 | Slide bushing | DIN1850 Ø 12 x Ø 18 x 20 | 1 |
