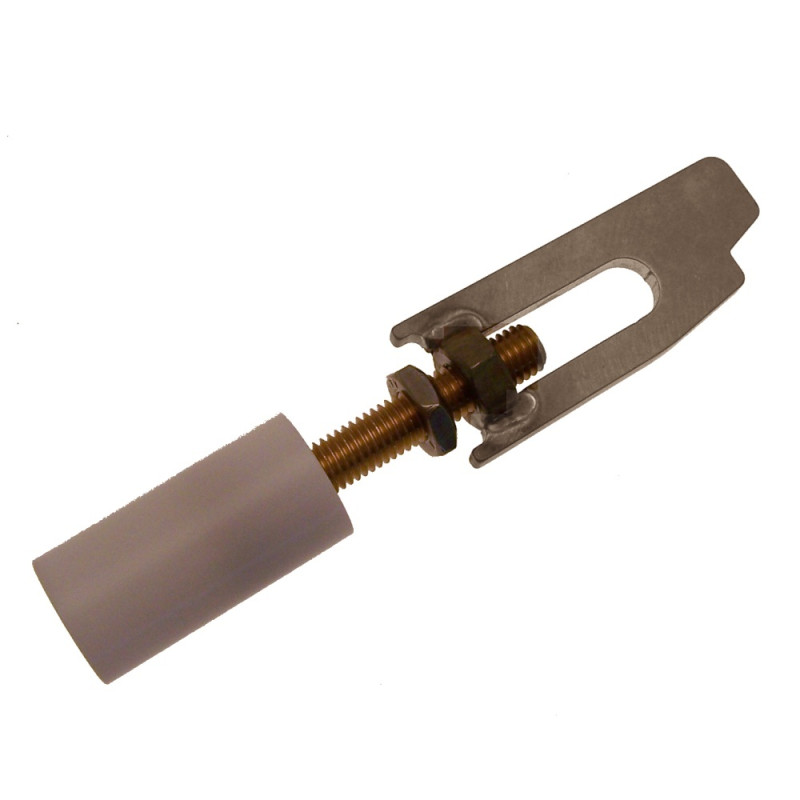

Lock Exploded View SR2 Dicer No. 249 and Higher

Lock Exploded View SR2 Dicer No. 249 and Higher
Lock Exploded View SR2 Dicer No. 249 and Higher
Lock Exploded View for Ruhle SR2 No. 249 and Higher   Pos No. Part No. De... Read More
  • Stock: On order
  • Brand: Ruhle
  • Type: 103866

Available Options

Request Quote
Hopper Exploded View SR2 No. 249 and Higher
Quickview
Hopper Exploded View SR2 No. 249 and Higher
View Details Request Quotes
Rack Assembly SR2 No. 249 and Higher
Quickview
Rack Assembly SR2 No. 249 and Higher
View Details Request Quotes

Lock Exploded View for Ruhle SR2 No. 249 and Higher

  Pos No. Part No. Description Add Info Required
F41976a 1 F41976a Housing SR 2 Turbo 2
F240372 2 F240372 Cylinder head screw M10 x 60 - LH 1
F26716 3 F26716 Bushing Ø 11 x Ø 25 x 50 1
F21307 4 F21307 Ring Ø 10,2 x Ø 19 x 2 1
F240499 5 F240499 Hexagonal nut DIN439 M 10 LH 2
