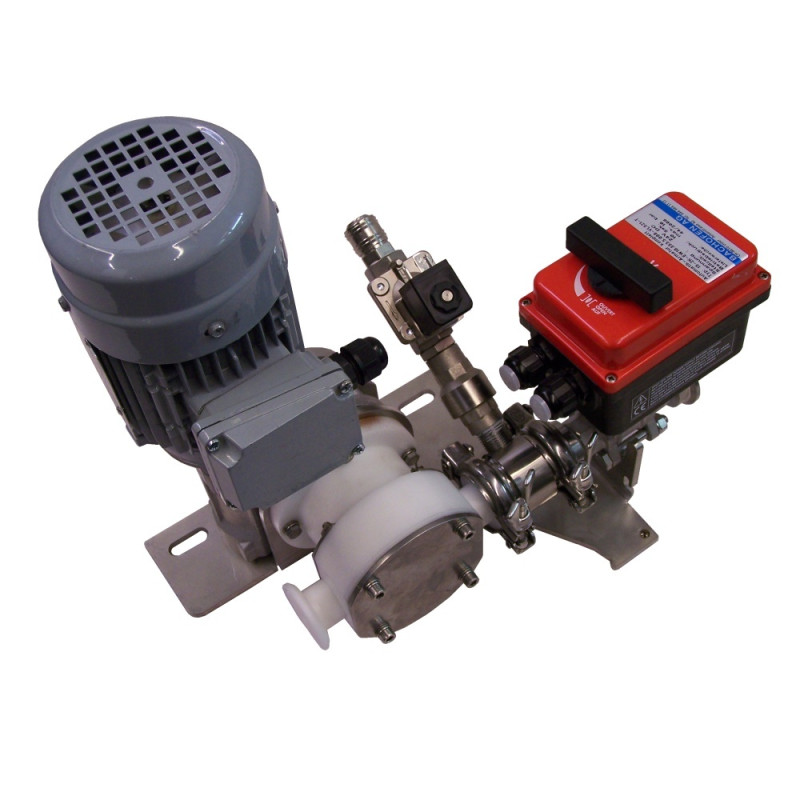

Secondary Pump Assembly Ruhle IR56 Injector
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 105710 | Profile | 309 x 220 x 138 x 6 | 1 |
 |
2 | 105775 | Pump housing | IR 56 | 1 |
 |
3 | F29114 | Clamp light | DIN25-40/1-1/2" | 3 |
 |
4 | 100690 | valve unit | IR 28/56 | 1 |
 |
5 | 105797 | socket | Ø 13 x Ø 50 x 40 | 3 |
 |
6 | F29354 | Angle inside-to-inside | 90° FG 2023 1/2" | 1 |
 |
7 | F29353 | Hose socket | FG30 2313 1/2" | 1 |
 |
8 | F21385 | Hexagonal bolt | DIN933 M 6 x 30 | 4 |
 |
9 | F24031 | Spring lock washer | DIN127 B 6 | 5 |
 |
10 | F20258 | Washer | DIN125 A 6,4 | 5 |
 |
11 | F20561 | Spring key | A 8 x 7 x 70 | 1 |
|
12 | F27693 | Washer | DIN125 A 10,5 | 2 |
|
13 | F26379 | Spring lock washer | DIN127 B 10 | 2 |
 |
14 | F20147 | Hexagonal nut | DIN934 M 10 | 2 |
 |
15 | F20130 | Cylinder head screw | DIN912 M 6 x 20 | 1 |
 |
16 | F29110 | Seal | Ø 32 x Ø 52,5 x 6,5 | 3 |
 |
17 | F29045 | Gear motor | P 050 FB 010 RL63B2 | 1 |
 |
18 | F247852 | Secondary pump valve IR28/56 | 15-2K-EW 10.33S-VL521-T | 1 |
 |
19 | F20948 | Cable gland | M 16 x 1.5 | 1 |
 |
20 | F20698 | Cable | ÖZ-J 4 x 1.5 mm² | 3 |
 |
21 | F23343 | Cable | ÖZ-J 3 x 1.0 mm² | 2.7 m |
 |
22 | F23309 | Socket | GDM 3011 | 1 |
 |
23 | F23066 | Cable | ÖZ-J 4 x 1.0 mm² | 2.9 m |
