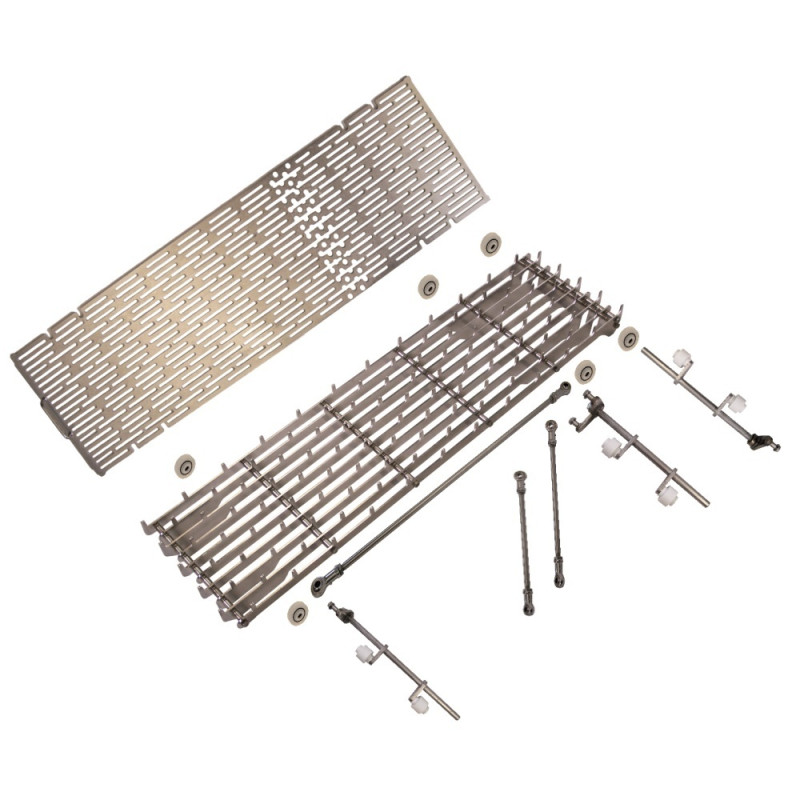

Transport System Assembly IR56 Injector No. 473 and Higher
- Stock: On order
- Brand: Ruhle
- Type: 105929
Transport System Assembly IR56 Injector No. 473 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F42138 | Conveyor support | IR 28/56 | 1 |
 |
2 | F458327 | Transport rake | IR 28/56 | 1 |
 |
3 | 105947 | Drive shaft | IR 28/56 | 1 |
 |
4 | F21907 | Ring | Ø 20,1 x Ø 40 x 12 | 3 |
 |
5 | F20837 | Threaded pin | DIN914 M 8 x 10 | 3 |
 |
6 | F248683 | compensating disc | Ø 20,3 x Ø 39 x 0,65 | 3 |
 |
7 | 105949 | Lever | IR 28/56 | 1 |
 |
8 | F22916 | Washer | DIN125 A 15 | 1 |
 |
9 | F26133 | Hexagonal nut | DIN439 M 14 | 1 |
 |
10 | F244906 | compensating disc | Ø 20,3 x Ø 39 x 1,5 | 3 |
 |
11 | F25430 | Locking ring | DIN471 Ø 20 x 1,2 | 1 |
 |
12 | F440333 | Connecting rod | IR 28/56 | 1 |
|
13 | 105951 | Drive shaft | IR 28/56 | 2 |
 |
14 | 105953 | Lever | IR 28/56 | 1 |
|
15 | 100910 | Washer | DIN125 A 19 | 2 |
|
16 | F20572 | Hexagonal nut | DIN439 M 18 x 1,5 | 2 |
 |
17 | F26363 | Spring key | A 6 x 6 x 18 | 2 |
 |
18 | F440340 | Connecting rod | IR 28/56 | 1 |
 |
19 | 105952 | Lever | IR 28/56 | 1 |
 |
20 | F440339 | Connecting rod | IR 28/56 | 1 |
 |
21 | F442105 | Flange | IR 28/56 | 6 |
