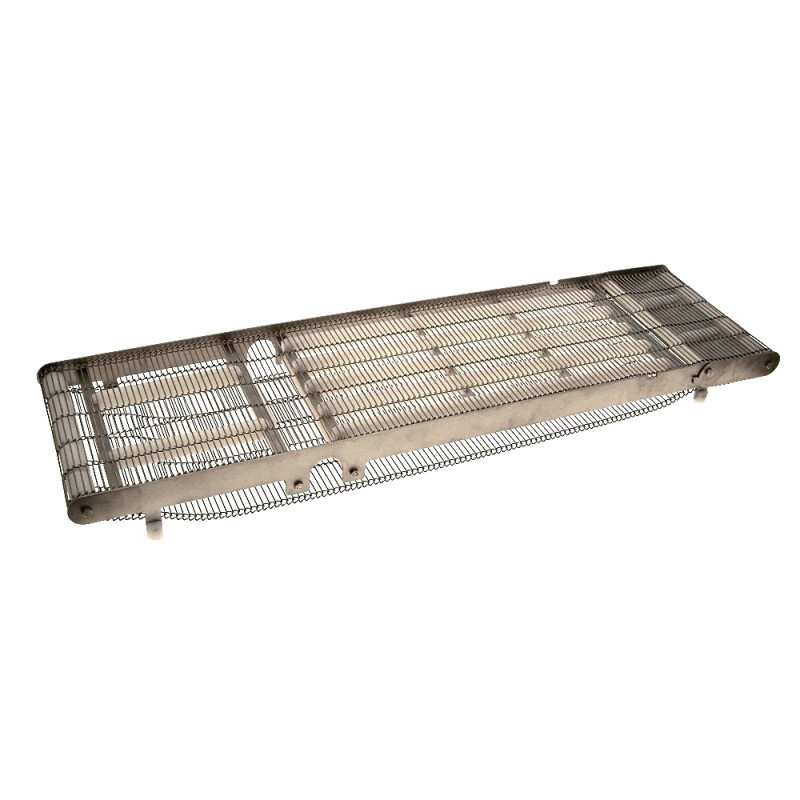

Transportband Complete Ruhle IR17 Injector No. 235 and Higher
- Stock: On order
- Brand: Ruhle
- Type: 110027
Transportband Complete Ruhle IR17 Injector No. 235 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 110024 | Transportband | IR 17 | 1 |
 |
2 | 110020 | Discharge | IR 17 | 1 |
 |
3 | 108946 | Shaft | Ø 14 x 252 | 1 |
 |
4 | 108933 | Shaft | Ø 30 x 252 | 1 |
 |
5 | 110025 | Shaft | Ø 14 x 258 | 1 |
 |
6 | 110026 | Shaft | Ø 30 x 258 | 1 |
 |
7 | F21047 | Hexagonal bolt | DIN933 M 6 x 12 | 8 |
 |
8 | 108940 | Shaft | Ø 20 x 252 | 2 |
 |
9 | F29102 | Threaded insert | M 6 x M 10 x 1,5 x 14 | 4 |
 |
10 | 108954 | Plate | 186 x 25 x 10 | 2 |
 |
11 | 109932 | Support | 479 x 25 x 10 | 5 |
 |
12 | 108947 | Foot | Ø 18 x 18,7 | 2 |
 |
13 | 109073 | Foot | Ø 18 x 25 | 2 |
 |
14 | 109588 | Cylindrical pin | Ø 5 x 18,5 | 4 |
 |
15 | 110021 | Bolt | Ø 12 x 16 | 2 |
 |
16 | 108166 | Shaft | Ø 15 x 251,5 | 1 |
 |
17 | 106874 | Wire mesh belt | 1020 x 250 | 2000 mm |
 |
18 | 109561 | Bushing | Ø 2,5 x 30 | 3 |
 |
19 | 110111 | Support plate | 65 x 20 x 10 | 2 |
 |
20 | 109407 | Countersunk head screw | DIN7972 3,9 x 9,5 | 9 |
