Transportsystem Assembly IR17 Injector No. 235 and Higher

Type: 109225
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1353

* Transportsystem Assembly IR 17 no. 235 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Transportsystem Assembly IR17 Injector No. 235 and Higher

Type: 109225
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1353

* Transportsystem Assembly IR 17 no. 235 and higher:
--110027 Transportband
--108960 Flansch
--F23692 Radial-Wellendichtring
--108961 Flansch
--108963 Hebel
--108964 Zahnrad
--108973 Bolzen
--F23269 Druckfeder
--109103 Flansch
--109245 Flansch
--109075 Welle
--F108958 Welle
--F22943 Gewindestift
--109074 Scheibe
--F25887 O-Ring
--1091109560 Senkholzschraube
-- 109162 Bolzen
-- F20262 Sicherungsring
--109996 Filter
--110937 Buchse
--F22116 Scheibe
--F250798 Sechskantmutter

Transportsystem Assembly IR17 Injector No. 235 and Higher

Pos No.	Part No.	Description	Add Info	Required

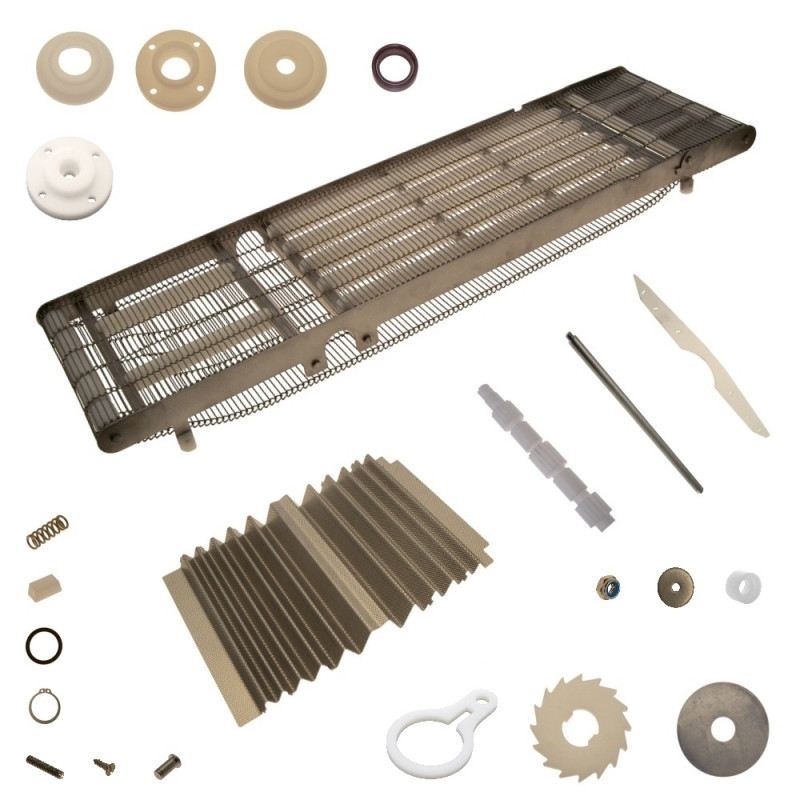

1	110027	Conveyor belt	IR 17	1
2	108960	Flange	Ø 60 x 11,5	1
3	F23692	Radial shaft seal	Ø 25 x Ø 35 x 6	1
4	108961	Flange	Ø 60 x 13,7	1
5	108963	Lever	129 x 78 x 8	2
6	108964	Sprocket wheel	Ø 60 x 8	2
7	108973	Bolt	Ø 21 x 9,9 x 8	2
8	F23269	Pressure spring	Ø 0,75 x De5,65 x 15	2
9	109103	Flange	Ø 60 x 11,5	1
10	109245	Flange	Ø 60 x 14,5	1
11	109075	Shaft	Ø 14 x 333	1
12	108958	Shaft	Ø 38 x 297,5	1
13	F22943	Threaded pin	DIN551 M 6 x 30	1
14	109074	Disc	Ø 22,1 x Ø 85 x 2,5	2
15	F25887	O-ring	Ø 14 x 2	1
16	109560	Countersunk head wood screw	Ø 5 x 16	8
17	109162	Bolt	Ø 20 x 34,5	1
18	F20262	Locking ring	DIN471 Ø 14 x 1	1
19	109996	Filter	IR 17	1
20	110937	Bushing	Ø 30 x 17	1
21	F22116	Disc	Ø 6,5 x Ø 30 x 3	1
22	F250798	Hexagonal nut	DIN985 M 6	1
