Semi-Automatic Tray Sealer TS-200

Type: Seal:250x237mm
Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 32 X 29 X 27
Shipping Weight: 128 lbs
CM Product Code: 6475
Financing Available
Note: Shipping to be determined
* Model Option Semi-Automatic Tray Sealer:

* Die Set options:

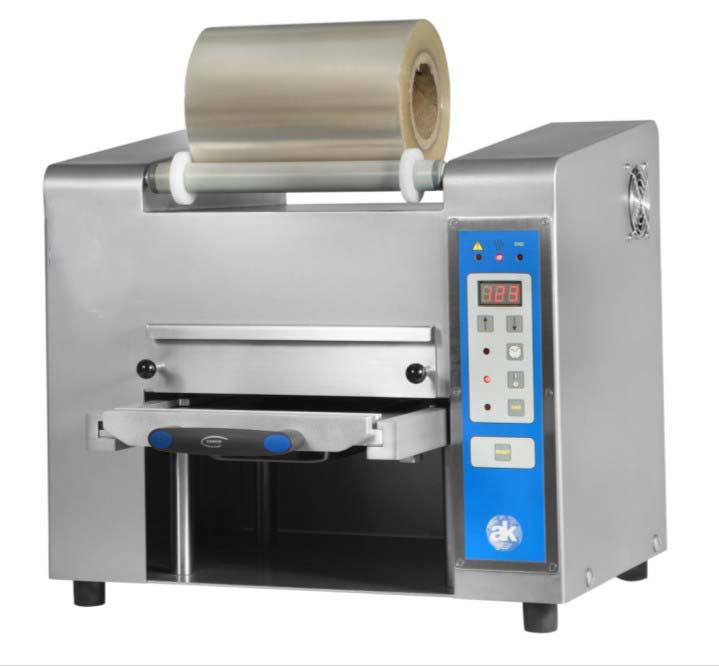

AK Ramon Semi-Automatic Tray Sealer TS-200

Technical information

  • Stainless steel construction.
  • Die set in anodized aluminum.
  • Semi-automatic tray sealer.
  • Automatic sealing system.
  • Automatic film feed.
  • Acoustic and visual device end of cycle.
  • Cutting the film at the backside of the plate.
  • Digital panel with temperature control (0º-230ºC).
  • Compact and robust model.
  • Easy change of mold, molds are interchangeable in few seconds.
  • Fast heating of the selected temperature.
  • Simple use machine.
  • Allows working with different trays materials types, PP, PET, ALUMINUM…
  • Machine works in single phase.
  • Maximum sealing surface: 250x237mm.
  • Film roll width: 200/220mm.
  • Power: 900W.

Standard die set

  • Multi-mold for 3 different sizes: 260x192mm; 224x192; 137x192mm
  • Die set 1/4 GN (260x160mm)
  • Die set 1/8 GN (160x130mm)


Any type of special die set can be made according to the customer trays.
