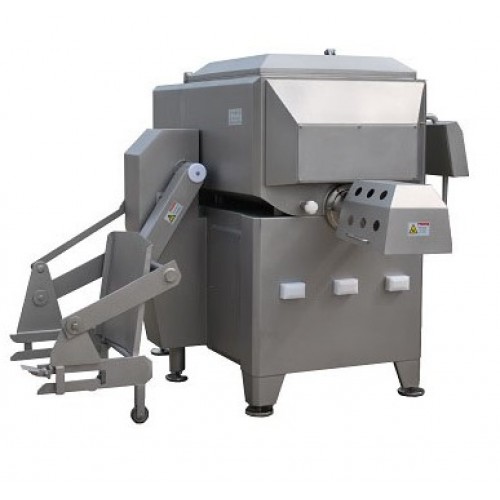

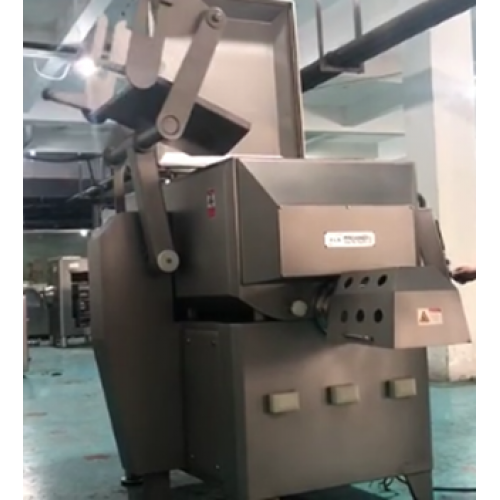

CM200 Industrial Mixer Grinder with 200L Hydraulic Lift

Type: Capacity: 600 liter
Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 80 X 50 X 60
Shipping Weight: 2,000 lbs
CM: 8139
Financing Available
Note: Shipping to be determined

CM200 Mixer Grinder with Lift

Machine comes with 1 Kidney plate, 2 Knifes and 2 plates which allows to be more efficient and allow for Faster Better Grinding.

Option to Select two Grinder Plates that comes with Machine (From 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, and 25mm)

Machine comes with ribbon double pole T Type Paddle Mixer Shafts for Better Mixing (See attached Picture Below)

Specifications:

  • Fully Stainless Steel

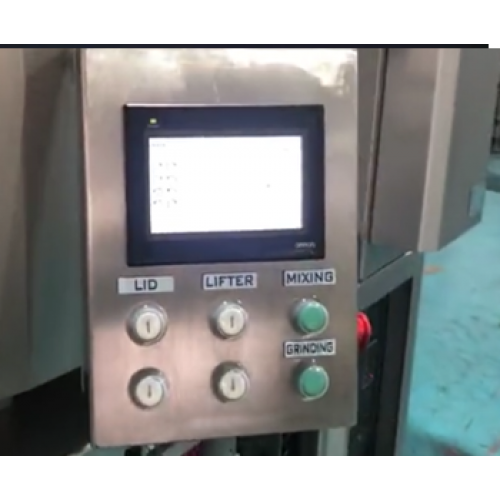

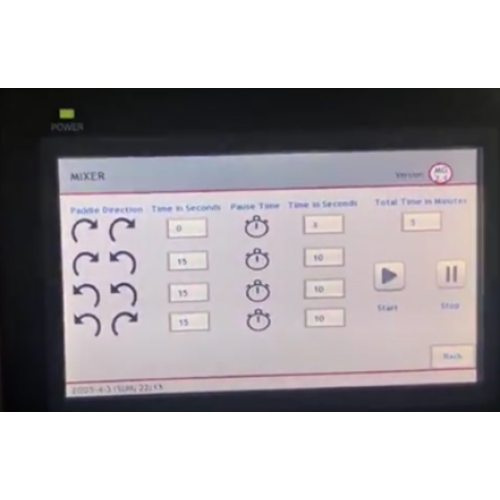

  • PLC & HMI with VSD control
  • Easy for Installation and Cleaning
  • Grinder Plate Outlet: 200mm
  • Auger Speed: Variable Speed
  • Output: 10000 kg/hr.

Technical Data:

  • Lift Capacity: 260 kg
  • Height between discharge and guard: 750 mm
  • Rated Current: 60 A
  • Machine Dimension: 2250x2400x1900 mm
  • Grinder Motor Power: 22+2.2 Kw
  • Mixer Motor Power: 2x4 Kw
  • Mixer Speed: 37 rpm

                                                 Parts from well-known International Suppliers

international brand
