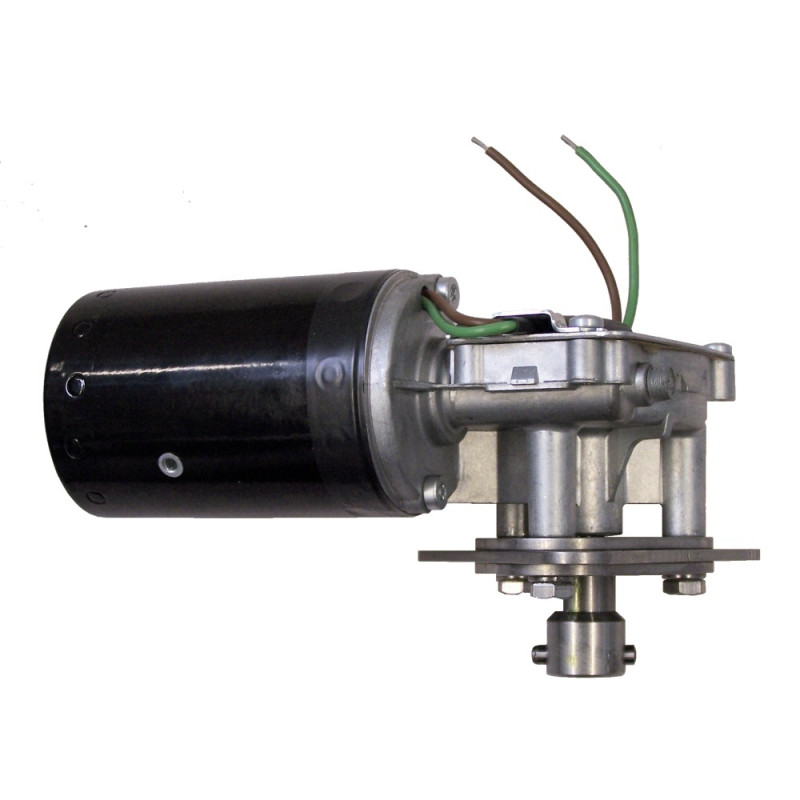

Drive Complete IR56 No. 473 and Higher

Type: 105802
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1703

* Drive Complete IR 56 Facelift No. 473 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email [email protected] Prices are subject to change without notice.

Drive Complete IR56 No. 473 and Higher

Type: 105802
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1703

* Drive Complete IR 56 Facelift No. 473 and higher:
--105726 plate / sheet
-- F20258 Washer
-- F26033 Hexagonal bolt
--F24031 Spring lock washer
--105727 plate / sheet
--105728 bushing
-- 105979 Cylindrical pin
--F10266 Insulating tape
--105590 Gear motor

Drive Complete IR56 No. 473 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	105726	plate / sheet	89 x 80 x 3	1
2	F20258	Washer	DIN125 A 6,4	3
3	F26033	Hexagonal bolt	DIN933 M 6 x 20	3
4	F24031	Spring lock washer	DIN127 B 6	3
5	105727	plate / sheet	62 x 57,5 x 3	2
6	105728	bushing	Ø 20 x 30	1
7	105979	Cylindrical pin	ISO8734 - Ø 5 m6 x 26	1
8	F10266	Insulating tape	15 mm black	0.38 m
9	105590	Gear motor	CHP / 24V 21W	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: [email protected]

Description

Drive Complete IR56 No. 473 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	105726	plate / sheet	89 x 80 x 3	1
2	F20258	Washer	DIN125 A 6,4	3
3	F26033	Hexagonal bolt	DIN933 M 6 x 20	3
4	F24031	Spring lock washer	DIN127 B 6	3
5	105727	plate / sheet	62 x 57,5 x 3	2
6	105728	bushing	Ø 20 x 30	1
7	105979	Cylindrical pin	ISO8734 - Ø 5 m6 x 26	1
8	F10266	Insulating tape	15 mm black	0.38 m
9	105590	Gear motor	CHP / 24V 21W	1
