Drive Assembly

Type: F451236
Brand: Ruhle
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1115

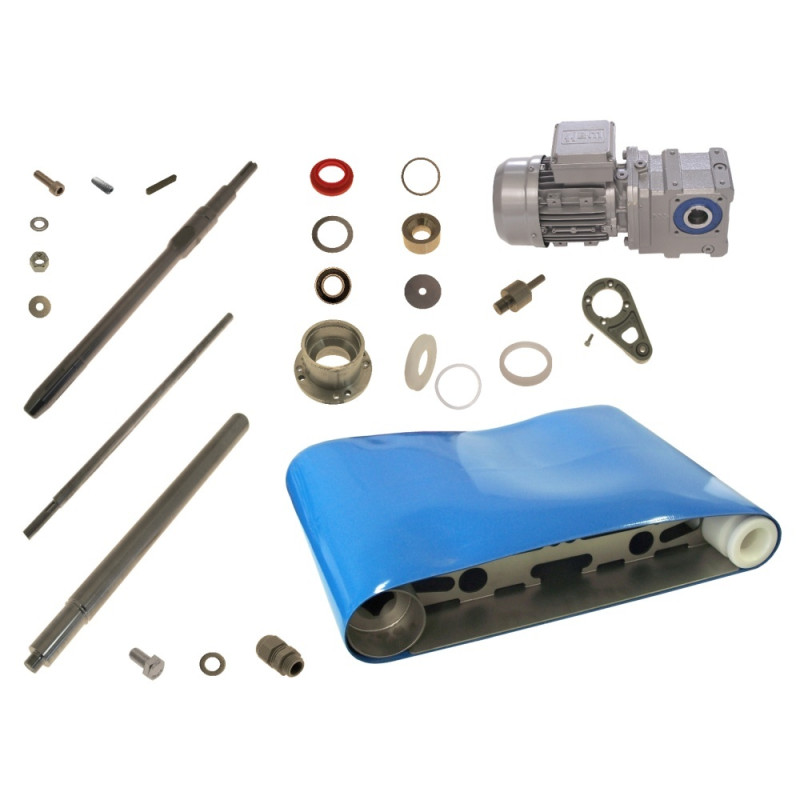

* Drive Assembly 1 SR3 Lifting unit No. 35 and higher:

  Pos. No.  Part No.  Description  Add. Info  Required
  1 F28386 Shaft Ø 40 x 620 2
  2 F28382 Shaft Ø 40 x 640 1
  3 F26798 Disc Ø 20,5 x Ø 60 x 5 3
  4 F20450 Hexagonal nut DIN934 M 20 x 1,5 3
Group 5 F42033 Conveyor belt SR 3 1
  6 F28212b Housing Ø 140 x 100 1
  7 F20842 Tapered ball bearing DIN628 - 3209 2RS 2
  8 F28380 Disc Ø 70 x Ø 87,5 x 2 1
  9 F28378 Scraper 55 x 88 x 18,5 1
  10 F27693 Washer DIN125 A 10,5 4
  11 F23173 Cylinder head screw DIN912 M10 x 40 4
  12 F26833 Threaded pin DIN915 M 12 x 20 4
  13 F28381 Disc Ø 45,5 x Ø 51,5 x 2 1
  14 F28373 Shaft Ø 55 x 798,2 1
  15 F28375 Ring Ø 30,2 x Ø 60 x 25 1
  16 F22615 Spring key A 8 x 7 x 55 1
  17 F28377 Disc Ø 9 x Ø 45 x 5 1
  18 F20455 Hexagonal bolt DIN933 M 8 x 25 1
  19 F28376 Shaft Ø 40 x 97 1
  20 F20543 Washer DIN125 A 21 1
  21 F20450 Hexagonal nut DIN934 M 20 x 1,5 1
Group 22 106803 Ring SR 3 1
  23 106802 Ring Ø 88 x Ø 108 x 10 1
  24 F27653 Gear motor SUA 454A 72K4 1
  25 F20948 Cable gland M 16 x 1.5 1
