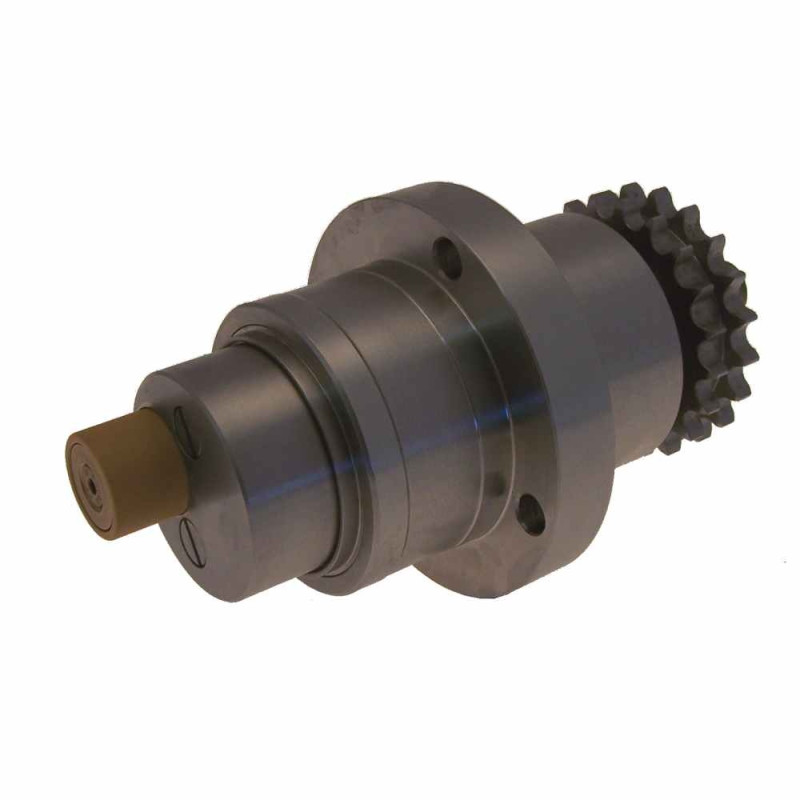

Eccentric Shaft Exploded View for SR2 Dicer
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F26814a | Take-up ring | Ø 50 x Ø 72 x 20 | 1 |
 |
2 | F28057 | Radial shaft seal | Ø 50 x Ø 65 x 8 | 2 |
 |
3 | F26809 | Housing | Ø 120 x 111,5 | 1 |
 |
4 | F23386 | Schrägkugellager | DIN628 - 3207 2RS | 2 |
 |
5 | F26811 | Ring | Ø 35,5 x Ø 45 x 40,5 | 1 |
 |
6 | F26813 | Scheibe | Ø 55 x Ø 71 x 2 | 1 |
 |
7 | F27883 | Eccentric shaft | Ø 50 x 155 | 1 |
 |
8 | 105417 | Roller | SR 2 Turbo / SR 3 Servo | 1 |
 |
9 | F21380 | Disc | Ø 35,5 x Ø 45 x 5 | 2 |
 |
10 | F26817 | Double chain wheel | Z 20-1/2x5/16 | 1 |
 |
11 | F21393 | Disc | Ø 20,5 x Ø 45 x 2,5 | 1 |
 |
12 | F26897 | Hexagonal nut | DIN439 M 20 x 1,5 | 2 |
