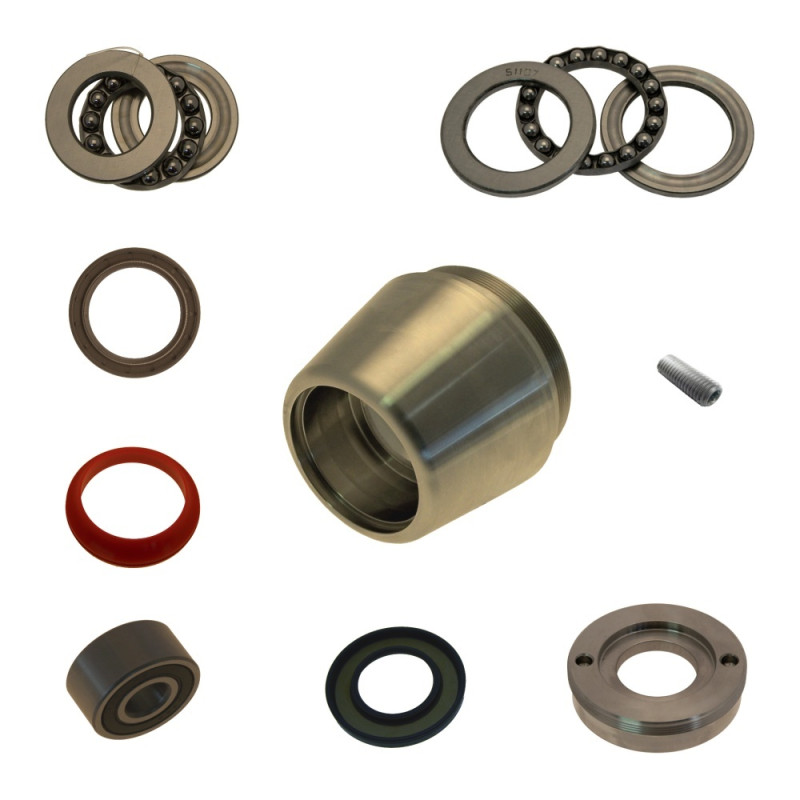

​Flansch Exploded View

    Pos. No.  Part No.  Description  Add. Info  Required
  107615 1 107615 Aufnahme Ø 100 x 85 1
  F23387 2 F23387 Axial-Rillenkugellager DIN711 51207 1
  107546 3 107546 Radial-Wellendichtring Ø 50 x Ø 62 x 7WA 1
  107152 4 107152 Abstreifer Ø 49,5 x Ø 66 x 14 1
  F23386 5 F23386 Schrägkugellager DIN628 - 3207 2RS 1
  F28040 6 F28040 Radial-Wellendichtring Ø 35 x Ø 62 x 7 1
  107614 7 107614 Mutter M 80 x 1,5 x Ø 36 x 20 1
  F24551 8 F24551 Axial-Rillenkugellager DIN711 51107 1
  F25432 9 F25432 Gewindestift DIN914 M 6 x 10 1
