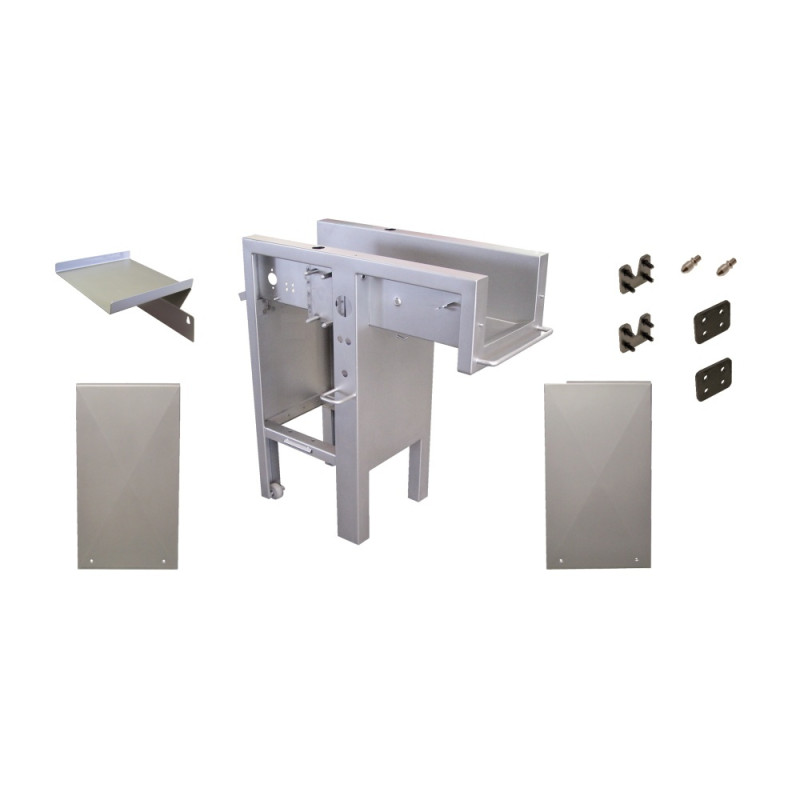

Gestell Assembly

Type: 107003
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2029
* Gestell Assembly PR 20:

  Pos. No.  Part No.  Description  Add. Info  Required
1 F40233 rack PR 20 1
2 F41802 Bracket PR 8 - 20 2
3 F21869 bolt Ø 12 x 33 2
4 F22869 bolt Ø 16 x 70 2
5 F26243 Profile 410 x 288 x 285 x 2,5 1
6 F26216 Lid 722 x 346 x 22 x 1,5 1
7 F22332 Lid 720 x 360 x 20 x 1,5 1
