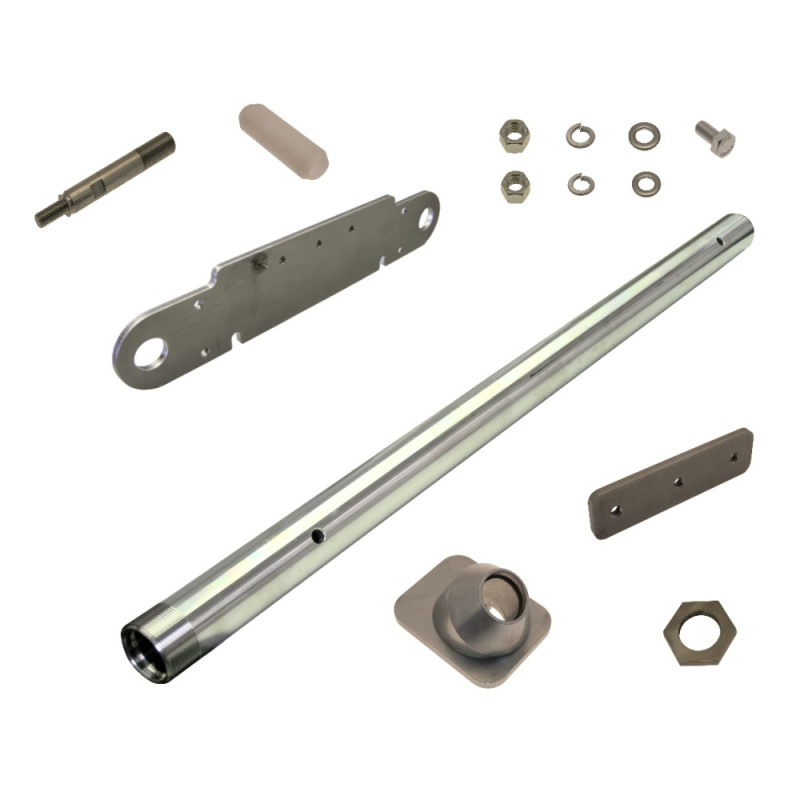

Guide Complete 105888 IR56 No. 473 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 105841 | Traverse | IR 28/56 | 1 |
 |
2 | F40766 | Guide tube | IR 28/56 | 2 |
 |
3 | F451515 | Storage | IR 28/56 | 2 |
 |
4 | 105623 | plate / sheet | 170 x 45 x 8 | 1 |
 |
5 | 105612 | Shaft | Ø 16 x 117 | 6 |
 |
6 | F240138 | bushing | Ø 22 x 72 | 6 |
 |
7 | F20147 | Hexagonal nut | DIN934 M 10 | 10 |
 |
8 | F26379 | Spring lock washer | DIN127 B 10 | 4 |
 |
9 | F240778 | Nut | M 40 x 1,5 x SW 60 x 6 | 4 |
 |
10 | F27693 | Washer | DIN125 A 10,5 | 4 |
 |
11 | F22138 | Hexagonal bolt | DIN933 M10 x 25 | 4 |
 |
12 | F23418 | Disc | Ø 8,5 x Ø 35 x 3 | 2 |
|
13 | F21260 | Spring lock washer | DIN127 B 8 | 2 |
|
14 | F20259 | Hexagonal nut | DIN934 M 8 | 2 |
