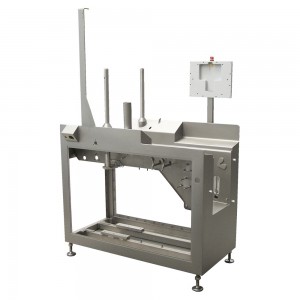

Rack Assembly IR56 Injector No. 473 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 105850 | rack | IR 28/56 | 1 |
 |
2 | 105888 | Guide | IR 28/56 | 1 |
 |
3 | F29171 | Machine base | Ø 80 x 150 x M 24 | 4 |
 |
4 | F27518 | Hexagonal nut | DIN934 M 24 | 4 |
 |
5 | 105632 | bolt | Ø 16 x 78 | 1 |
 |
6 | 105834 | Rolle | IR 28/56 | 4 |
 |
7 | 105842 | plate / sheet | IR 28/56 | 2 |
 |
8 | F20258 | Washer | DIN125 A 6,4 | 4 |
 |
9 | F24031 | Spring lock washer | DIN127 B 6 | 4 |
|
10 | F20203 | Hexagonal nut | DIN934 M 6 | 4 |
 |
11 | F22907 | Disc | Ø 10,5 x Ø 35 x 3 | 1 |
|
12 | F20147 | Hexagonal nut | DIN934 M 10 | 2 |
 |
13 | F42331 | Hinge | IR 28/56 | 2 |
 |
14 | 106742 | PC / back part | IR 28/56 | 1 |
 |
15 | 105679 | Shaft | Ø 18 x 556 | 2 |
 |
16 | F27531 | O-ring | Ø 10 x 2,5 | 2 |
 |
17 | 105681 | bushing | Ø 50 x 50 | 2 |
 |
18 | 105680 | bushing | Ø 50 x 35 | 2 |
 |
19 | F242131 | bolt | Ø 20 x 90 | 1 |
|
20 | F20202 | Washer | DIN125 A 13 | 1 |
|
21 | F20210 | Spring lock washer | DIN127 B 12 | 1 |
|
22 | F20204 | Hexagonal nut | DIN934 M 12 | 1 |
|
23 | F26379 | Spring lock washer | DIN127 B 10 | 1 |
