Description

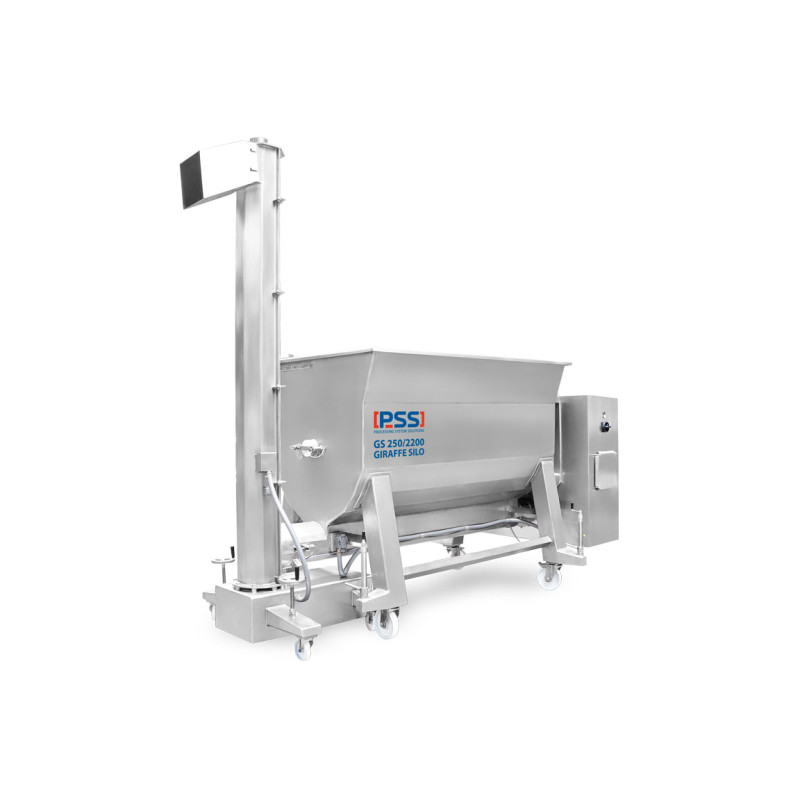

PSS Giraffe Silos- Meat processing system

PSS GS devices are used for temporary storage of raw material before its further processing. It help in continuous processing of food while making it easier to transfer it from one machine to another without any efforts.

Loaded with many features mentioned below:

Movable stand – horizontal and vertical part
Emergency stop
Pneumatic slip outlet, fixed
Rotary sleeve, pneumatic
Accessory trolley
Frequency inverter of the vertical worm
Frequency inverter of the horizontal worm
Frequency inverter of the mixing section

It comes in five different models,as per customers capacity requirements. Customer has flexibilty to choose any size.

Parameter	GS 900	GS 1200	GS 1700	GS 2200	GS 2700
Total hopper volume	1,100 L	1,400 L	1,900 L	2,400 L	2,900 L
Net volume	900 L	1,200 L	1,700 L	2,200 L	2,700 L
Horizontal worm input	4 kW	4 kW	5.5 kW	5.5 kW	5,5 kW
Vertical worm input	4 kW	4 kW	4 kW	4 kW	4 kW
Mixing section input	4 kW	4 kW	5 kW	7.5 kW	7.5 kW
Weight of the device	1,200 kg	1,400 kg	1,700 kg	2,000 kg	2,200 kg
Dimensions (LxWxH)	2 964 mm x 1 687 mm x 1 400 – 3 200 mm	3 264 mm x 1 687 mm x 1 400 – 3 200 mm	3 264 mm x 1 687 mm x 1 400 – 3 200 mm	3 664 mm x 1 687 mm x 1 400 – 3 200 mm	3 964 mm x 1 687 mm x 1 400 – 3 200 mm
Capacity	12 000 kg/h	12 000 kg/h	12 000 kg/h	12 000 kg/h	12 000 kg/h
Worms’ diameter	250 mm	250 mm	250 mm	250 mm	250 mm
Voltage network	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S
Standardized AC voltage	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%
Control voltage	230/24 V AC	230/24 V AC	230/24 V AC	230/24 V AC	230/24 V AC
