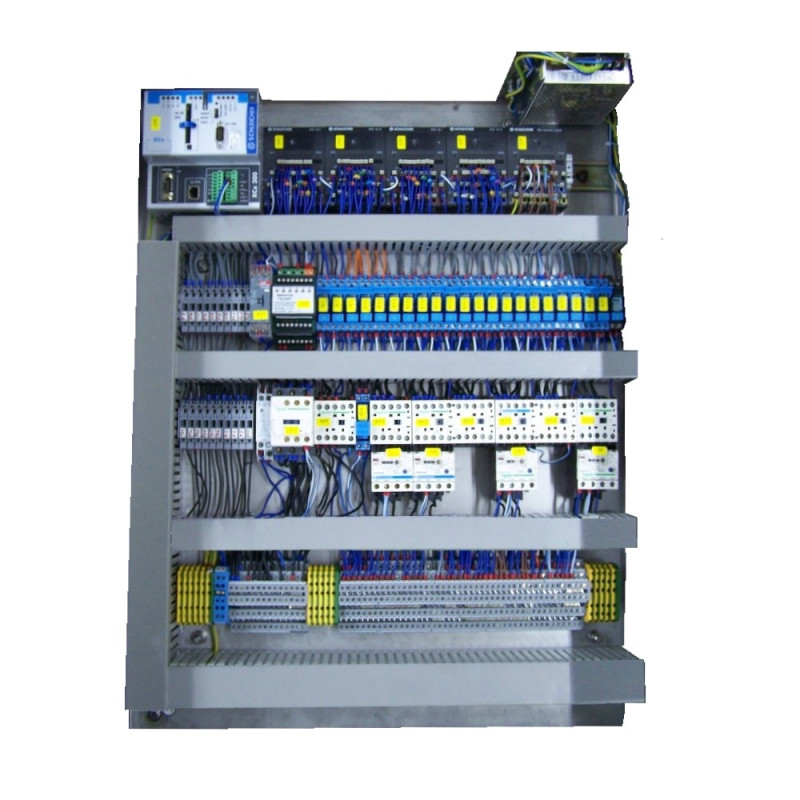

Mounting plate Complete Injector IR112

Type: 102698
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2226

* Mounting plate Complete IR 112:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Mounting plate Complete Injector IR112

Type: 102698
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2226

* Mounting plate Complete IR 112:
--F452372 Mounting plate
--F27057 Phase sequence relay
--F29184 Monitoring unit
--F249983 PLC-Module
--F29048 PLC-Module
--F29049 PLC-Module
--F29051 PLC-Module
--107339 Compact-Flash 512 MB
--F253538 CAN bus plug with 2 outlets
--F249013 Plug-in connector SUB D, TM
--F20723 Fuse terminal grey
--F27065 Side Plate Grey
--F27064 Fuse 3.15 AT
--F23890 Fuse 6,3 AT
--F27066 Fuse terminal black
--F27067 Side Plate Black
--F28198 Fuse 16 AT
--F28410 Line filter 25A
--F28667 Power contactor 24VDC
--F41540 Relay
--F41539 Relay
--F27095 Power contactor 230VAC
--F27091 Power contactor 24VDC
--F20916 turn contactor
--F27072 Time relay
--102068 Motor protect relay 0.11-0.16A
--F20911 Motor protect. relay 0.8 -1.2A
--F27076 Motor protect relay 3.7 -5.5 A
--F243821 Resistor
--F247636 Resistor
--F20719 Protective conductor terminal
--F28277 Side Plate Green
--F27053 Terminal - 3x, grey
--F28338 Side Plate Grey
--F27054 Terminal - 2x, blue
--F20721 Side Plate Blue
--F28278 End terminal
--F28275 squash connector
--F20287 squash connector

Mounting plate Complete Injector IR112

Pos No.	Part No.	Description	Add Info	Required
1	F452372	Mounting plate	IR 112	1
2	F27057	Phase sequence relay	IK 9179	1
3	F29184	Monitoring unit	MÜZ 602/D24-UM	1
4	F249983	PLC-Module	XCS 300 C	1
5	F29048	PLC-Module	RIO 16I / KE	2
6	F29049	PLC-Module	RIO 16O / KE	2
7	F29051	PLC-Module	RIO 4AI/4AO 20 mA	1
8	107339	Compact-Flash 512 MB	IR 112 / MSC	1
9	F253538	CAN bus plug with 2 outlets	Subcon-Plus F2	1
10	F249013	Plug-in connector SUB D, TM	9 poles SUB D	1
11	F20723	Fuse terminal grey	5.0 x 20mm	20
12	F27065	Side Plate Grey	FEM 8S	2
13	F27064	Fuse 3.15 AT	5,0 x 20 mm	30
14	F23890	Fuse 6,3 AT	5,0 x 20 mm	10
15	F27066	Fuse terminal black	6.4 x 32 mm	3
16	F27067	Side Plate Black	FEM 13U	1
17	F28198	Fuse 16 AT	6,3 x 32 mm	6
18	F28410	Line filter 25A	EPA NF-4-25-FTR	1
19	F28667	Power contactor 24VDC	LC1 D18BD	1
20	F41540	Relay	1 We / 24 VDC / 10A	18
21	F41539	Relay	2 We / 24 VDC / 6A	3
22	F27095	Power contactor 230VAC	LC1 K0910P7	1
23	F27091	Power contactor 24VDC	LP1-K0910 BD3	3
24	F20916	turn contactor	LP2-KO910 BD3	1
25	F27072	Time relay	CT-ARE	1
26	102068	Motor protect relay 0.11-0.16A	LR 2-K0301	1
27	F20911	Motor protect. relay 0.8 -1.2A	LR 2-K0306	2
28	F27076	Motor protect relay 3.7 -5.5 A	LR 2-K0312	1
29	F243821	Resistor	100 Ohm 0.5/0.6 W	1
30	F247636	Resistor	120 Ohm / 1 W	1
31	F20719	Protective conductor terminal	2x 4mm²	16
32	F28277	Side Plate Green	FEM 4AP V0	2
33	F27053	Terminal - 3x, grey	2.5mm²	59
34	F28338	Side Plate Grey	FED 3E	2
35	F27054	Terminal - 2x, blue	4mm²	3
36	F20721	Side Plate Blue	FEM 4A	1
37	F28278	End terminal	BNK - BADL	1
38	F28275	squash connector	BJD 6	3
39	F20287	squash connector	BJM 6	1
